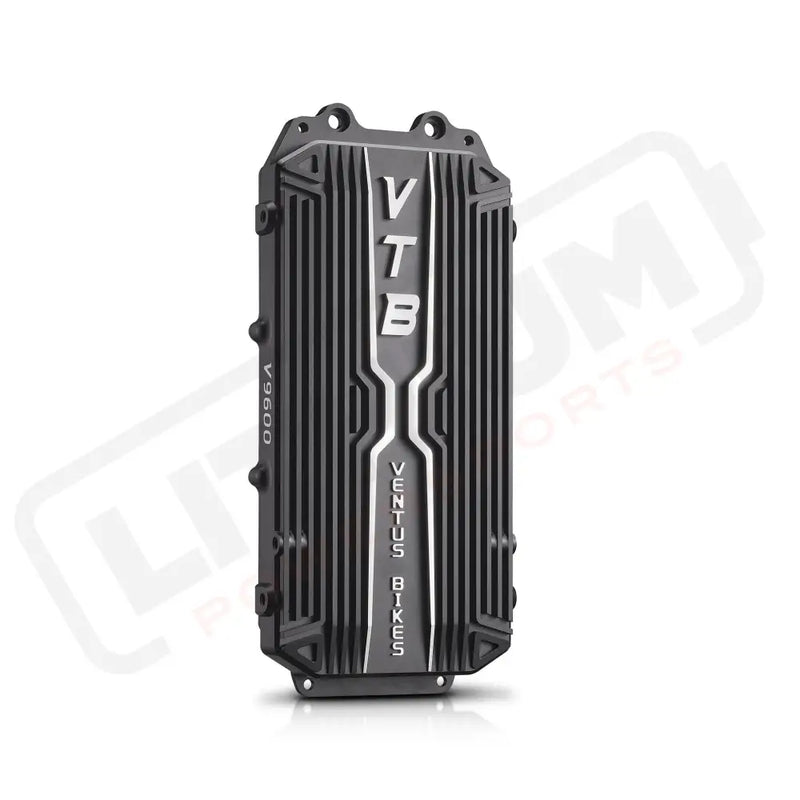

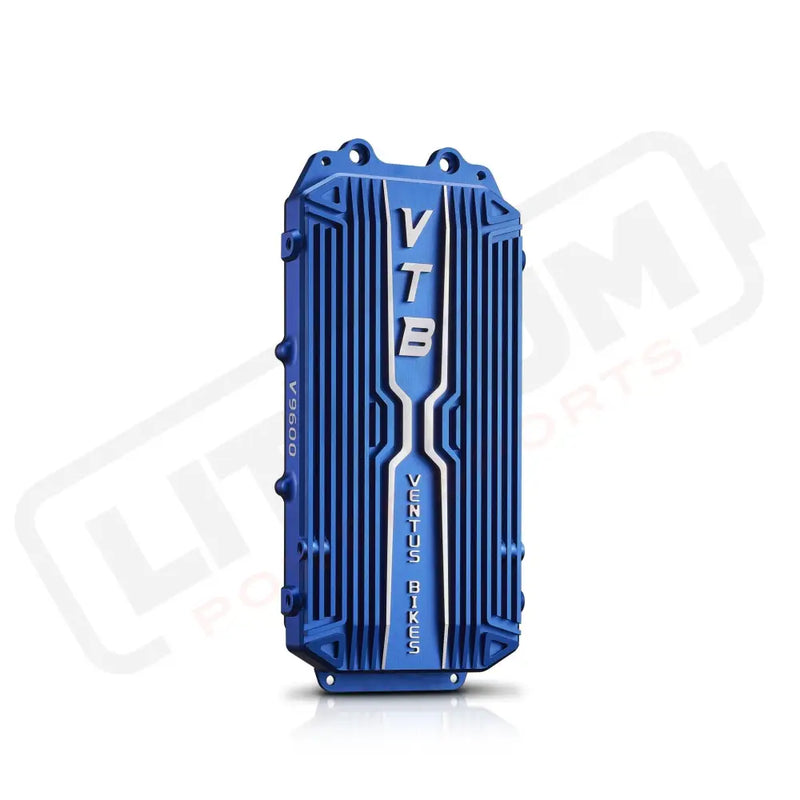

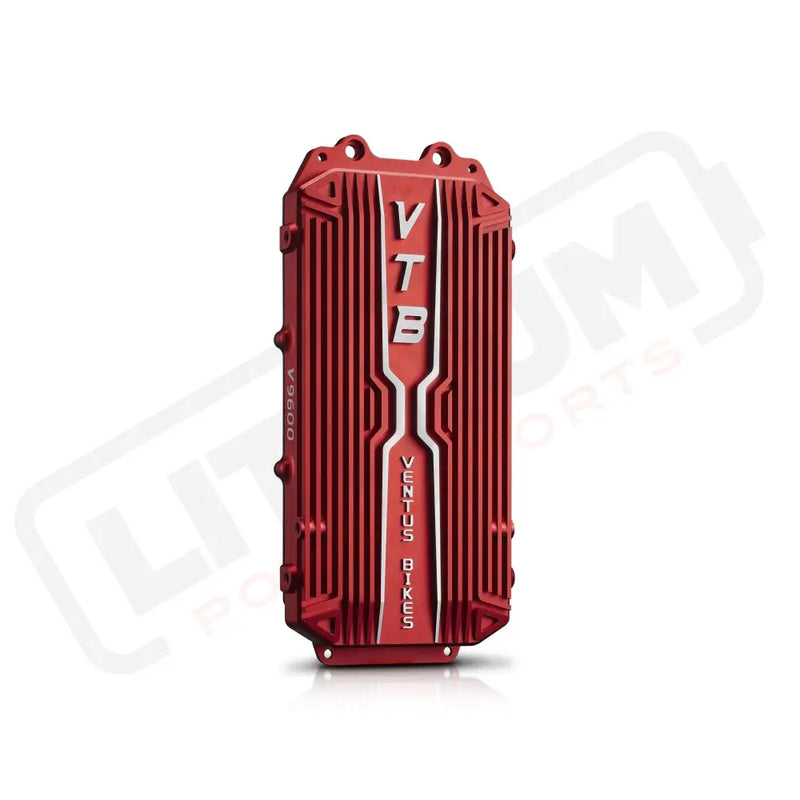

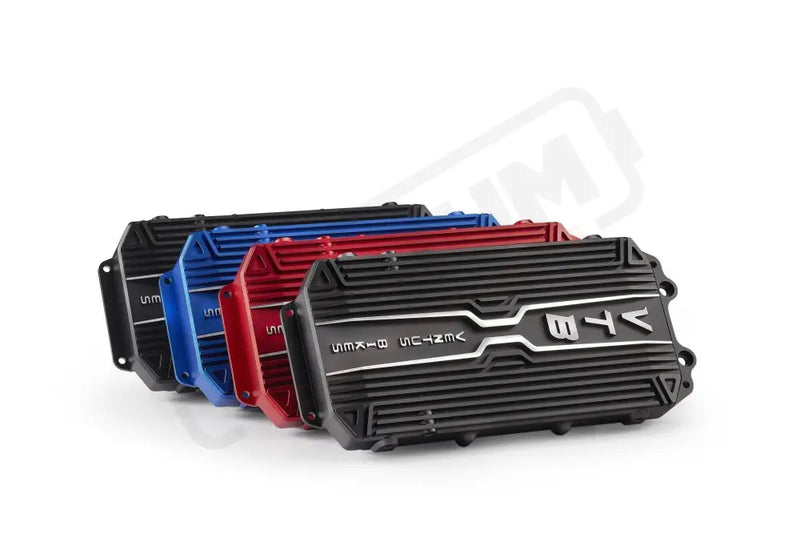

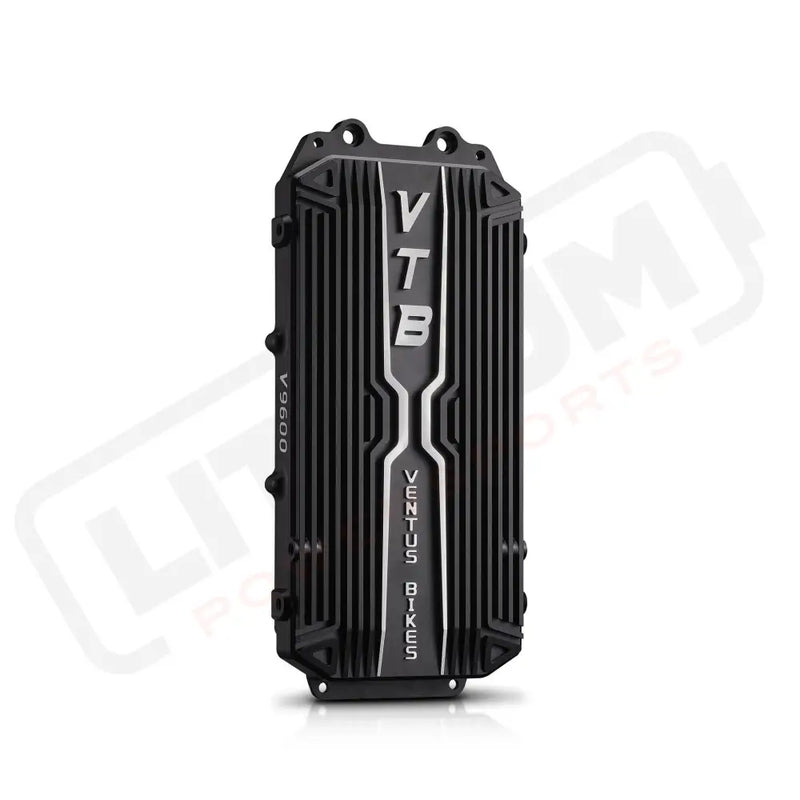

Ventus VTB V9600 Controller for Surron, Talaria & 79 Bikes
Fast & Free Shipping on Most Orders.
Low Price Guarantee – We’ll match or beat any authorized U.S. dealer’s price (conditions apply).
Financing Available – Flexible payment options (conditions apply).
Authorized U.S. Dealer for Every Brand We Sell.
Factory warranty coverage applies only to units originally sold by authorized U.S. dealers.
Have questions? Call or text 877-376-6380
VTB LCD Screen: Included
VTB Hand Controls: Included
How to choose your controller hall sensor:
Surron Light Bee + Original Motor – To Hall Sensor (6 Pin Square)
Surron Light Bee + VTB Motor – No need adaptor / N/A
Surron Light Bee + Third Party Motor – To Encoder (8 Pin Square) KO (Encoder) / EBMX / Trop / Sotion
Surron Light Bee + Third Party Motor – To Hall Sensor (6 Pin Square) – KO (Hall)
Surron Ultra Bee + Original Motor – TBD
Surron Ultra Bee + VTB Motor – No need adaptor / N/A
Surron Ultra Bee + Third Party Motor – TBD
Talaria Sting + Original Motor – To Talaria Sting Motor Exclusive (8 Pin Square)
Talaria Sting + VTB Motor – No need adaptor / N/A
Talaria Sting + Third Party Motor – To Talaria Sting Motor Exclusive (8 Pin Square)
Talaria X3 + Original Motor – TBD / Not supported
Talaria X3 + VTB Motor – No need adaptor / N/A
Talaria X3 + Third Party Motor – TBD
79 Bikes Falcon + Original – TBD
79 Bikes Falcon + VTB Motor – No need adaptor / N/A
79 Bikes Falcon + Third Party Motor (KO Encoder) / EBMX / Torp / Sotion) – To Encoder (8 Pin Square)
79 Bikes Falcon + Third Party Motor (KO Hall) – To Hall Sensor (6 Pin Square)
Description
Controller Specification:
Maximum Bus Phase Current: 500A/960A
Peak Power: 44kW
Operating Temperature Range: -25°C to 80°C
Sinusoidal Vector Control
Voltage Range: 30V-99V (Limit), 48V-84V (Operating)
Controller Features:
- Fine-tunable throttle response
- High-reliability redundant design
- Adaptive compensation for low throttle at low battery levels
- 3 power modes, 5 riding modes for quick switching
- 5 regenerative braking modes for quick switching
- Linear regenerative electronic braking, energy-saving up to 30%
- Customizable super-linear throttle handle
- Customizable throttle curve, burst power, high-speed power compensation, speed percentage
- Compatible with mainstream models including Light Bee, Ultra Bee, TALARIA Sting, TALARIA X3, 79 bike Falcon
- Full-function APP, available for both Apple and Android devices
- High-resolution color screen instrument panel
- Sensory unlocking
- Bluetooth binding with battery BMS for the instrument panel
- CNC radiator
- IP67 waterproof for the entire system
Package Contents:
Controller x1
Color Screen Instrument Panel x1
Instrument Panel Bracket x1
Throttle Handle x1
Switch Assembly x1
Thumb Throttle x1
Vehicle-specific Adapter Cable x1
Compatible Motors:
VTB Beast 28kW
VTB Beast 35kW
Sur-Ron Light Bee Factory
Sur-Ron Ultra Bee Factory
TALARIA Sting Factory
79 bike Falcon Factory
QS165
LTXS
Sotion FW01
Sotion Talaria
Compatible Batteries:
Series 16-22, compatible with various models of both factory and modified batteries.
VTB App: Real-time status
VTB App: Setup Guidance
VTB App: Basic & Advance Settings
