OEM Parts

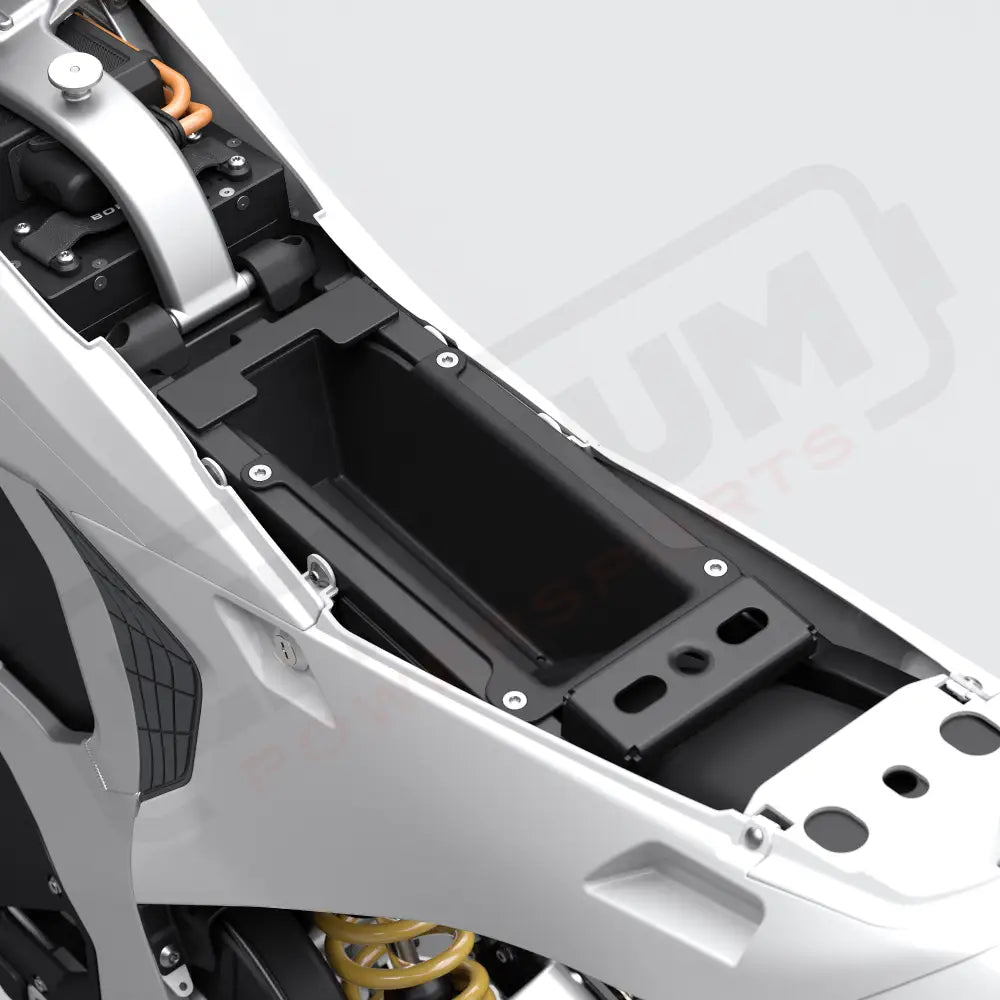

Bonnell 805 Body & Frame
Verify fitment before ordering. Click each product to confirm it matches the diagram callout. Item numbers point to specific parts, not universal fitment. Small hardware like bolts and washers may appear across multiple assemblies.
Quantity tip: Some parts are shared across sections - check the required quantity in the main diagram image above.
18 parts
-
$14.95Bonnell 805 Seat/Steering Lock Kit Genuine Bonnell Seat/Steering Lock Kit for the Bonnell 805 RX. Part Number: B4101-805SEA-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$28.95Bonnell 805 Footpeg Mount Right Genuine Bonnell Footpeg Mount Right for the Bonnell 805 RX. Part Number: B4201-805FPR-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$29.95Bonnell 805 Front Fender - White Genuine Bonnell Front Fender - White for the Bonnell 805 RX. Part Number: B4801-805WFF-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$129.95Bonnell 805 Kickstand Kit Genuine Bonnell Kickstand Kit for the Bonnell 805 RX. Part Number: B4902-805KSS-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$195.00Bonnell 805 White Bodywork Plastics Kit Genuine Bonnell White Bodywork Plastics Kit for the Bonnell 805 RX. Part Number: B4901-805WPL-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$78.95Bonnell 805 Common Plastics Kit Genuine Bonnell Common Plastics Kit for the Bonnell 805 RX. Part Number: B4901-805COM-B1 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$12.95Bonnell 805 Rear Wheel Axle Block Left Genuine Bonnell Rear Wheel Axle Block Left for the Bonnell 805 RX. Part Number: B4203-805RWL-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$28.95Bonnell 805 Footpeg Mount Left Genuine Bonnell Footpeg Mount Left for the Bonnell 805 RX. Part Number: B4201-805FPL-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$29.95Bonnell 805 Bash Guard Genuine Bonnell Bash Guard for the Bonnell 805 RX. Part Number: B4801-805000-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$12.95Bonnell 805 Rear Wheel Axle Block Right Genuine Bonnell Rear Wheel Axle Block Right for the Bonnell 805 RX. Part Number: B4203-805RWR-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$19.95Bonnell 805 Front Number Plate - White Genuine Bonnell Front Number Plate - White for the Bonnell 805 RX. Part Number: B4801-805WN1-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$1,500.00Bonnell 805 Frame Assembly Genuine Bonnell Frame Assembly for the Bonnell 805 RX. Part Number: B4201-805ASF-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$9.95Bonnell 805 Left/Right Upper Frame Guard Set Genuine Bonnell Left/Right Upper Frame Guard Set for the Bonnell 805 RX. Part Number: B4801-805CMD-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$249.95Bonnell 805 Welded Subframe Genuine Bonnell Welded Subframe for the Bonnell 805 RX. Part Number: B4202-805SFM-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$74.95Bonnell 805 Footpeg Set Genuine Bonnell Footpeg Set for the Bonnell 805 RX. Part Number: B4901-805SET-B1 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$75.95Bonnell 805 Welded Bashguard Genuine Bonnell Welded Bashguard for the Bonnell 805 RX. Part Number: B4204-805WBG-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$99.95Bonnell 805 Seat Assembly Genuine Bonnell Seat Assembly for the Bonnell 805 RX. Part Number: B4802-805SEA-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
-
$14.95Bonnell 805 Rear Fender - White Genuine Bonnell Rear Fender - White for the Bonnell 805 RX. Part Number: B4801-805WRF-01 Fits: Bonnell 805 RX Genuine Bonnell OEM part
