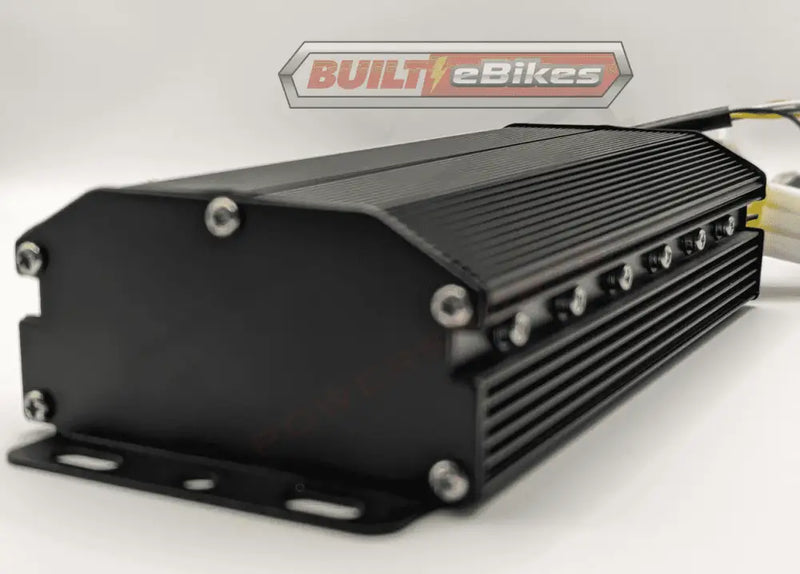

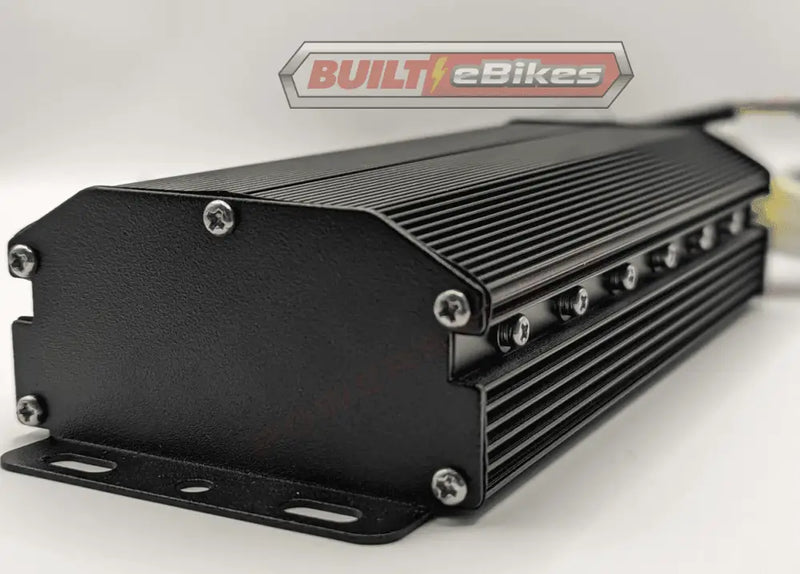

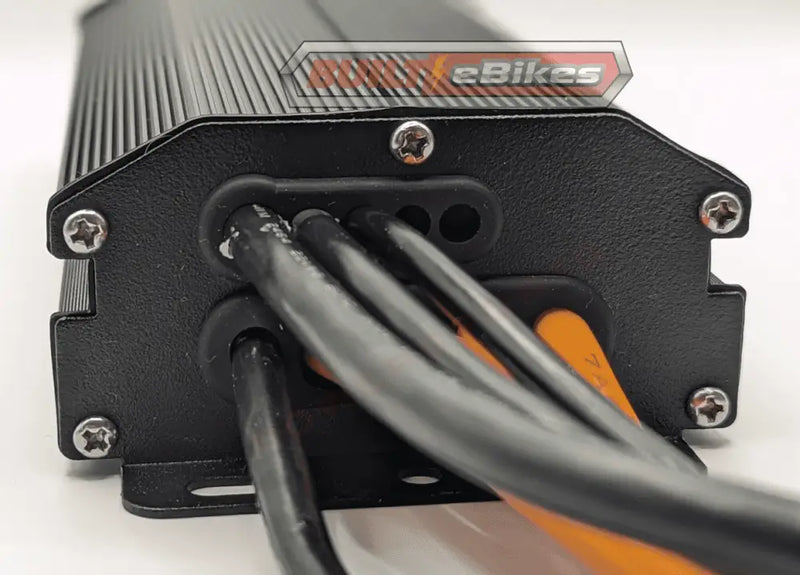

Nucular 24F Controller - On the stock Surron Segway battery, SinTech gives an additional ~2000 Watts, or 20-30% acceleration boost, as well as improved top speed and range. Features include reverse gear, powerful regenerative braking, and up to 3 customizable power profiles.
New 2.0 On-Board Computer
https://www.lithiumpowersports.com/pages/new-nucular-on-board-2-0-computer
Features:
- Fully programmable controller
- Small size
- 27 kW maximum power
- Supports batteries up to 90V

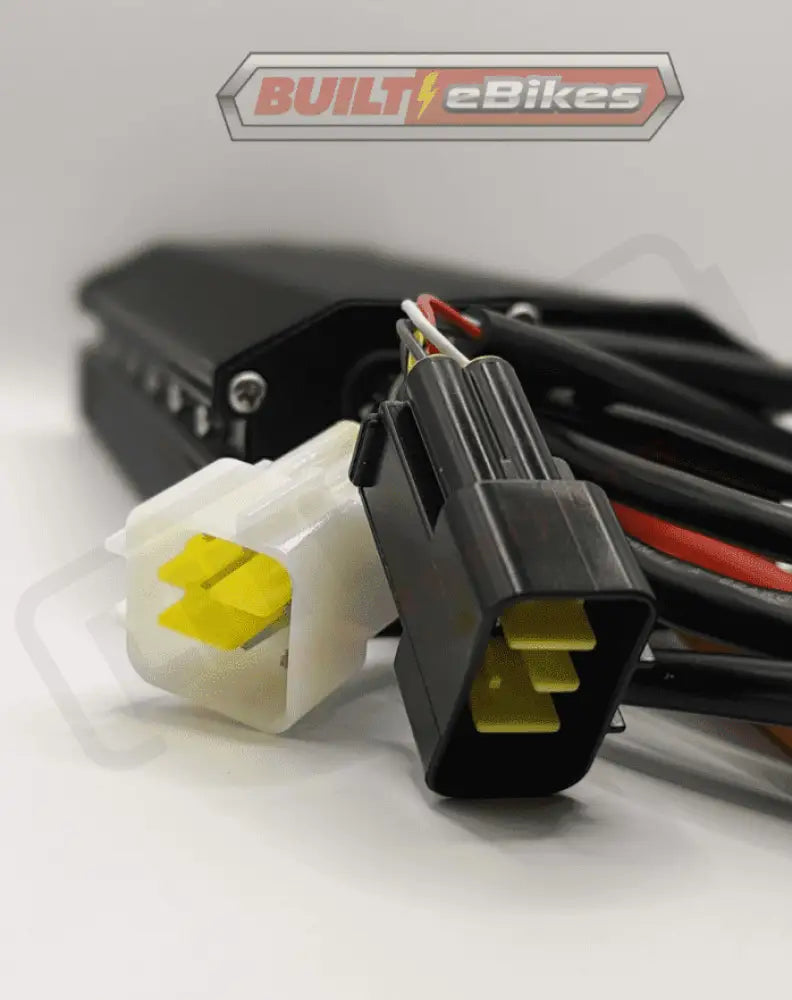

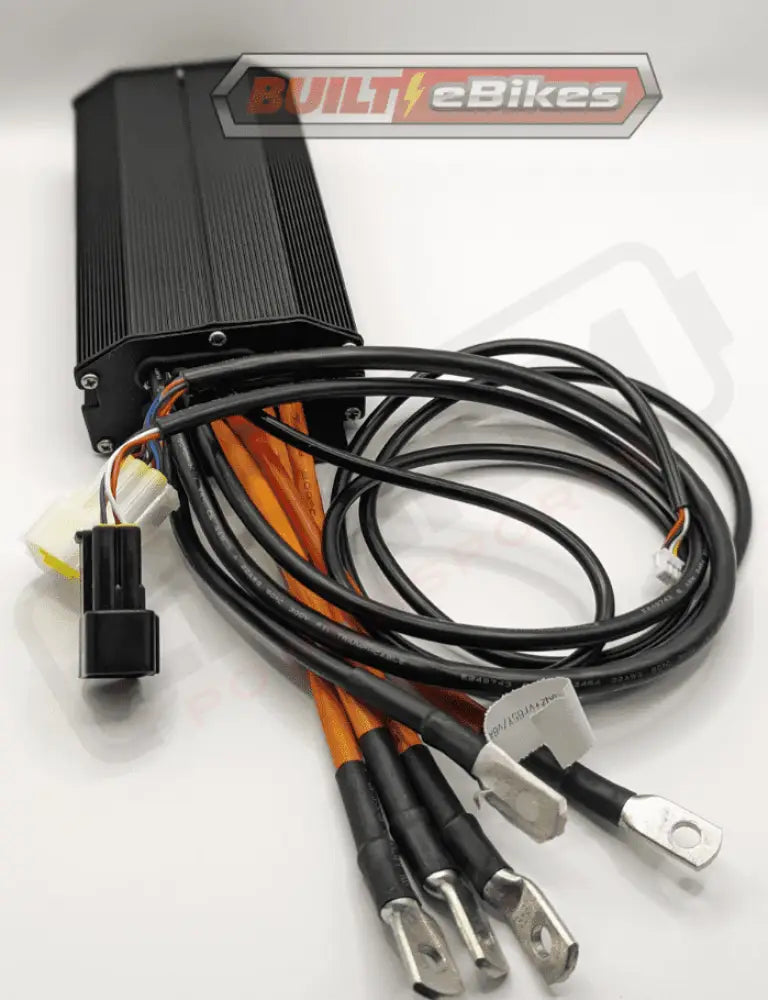

- Comes with Surron harness
- Basic install instructions available
- Plug-and-play mount kit for Surron
Features (extended):
- Cheapest power, top speed, and range upgrade
- Allows full customization by user. Tune power profiles manually or try recommended presets!
- Plug-and-play kit - you can install it yourself!
Unique features:

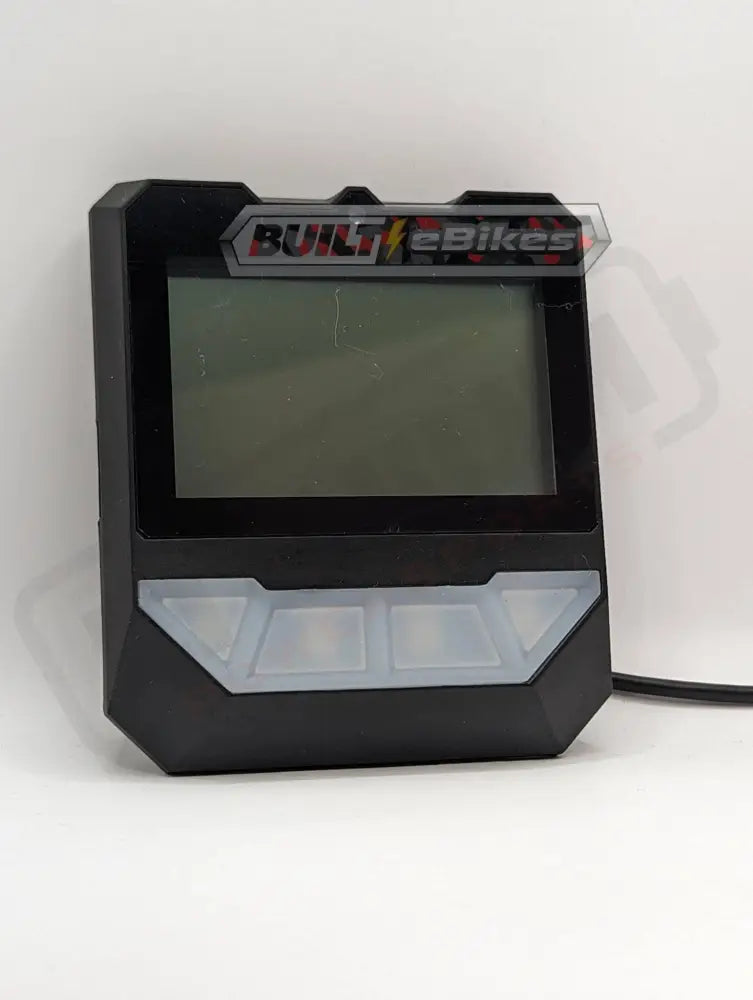

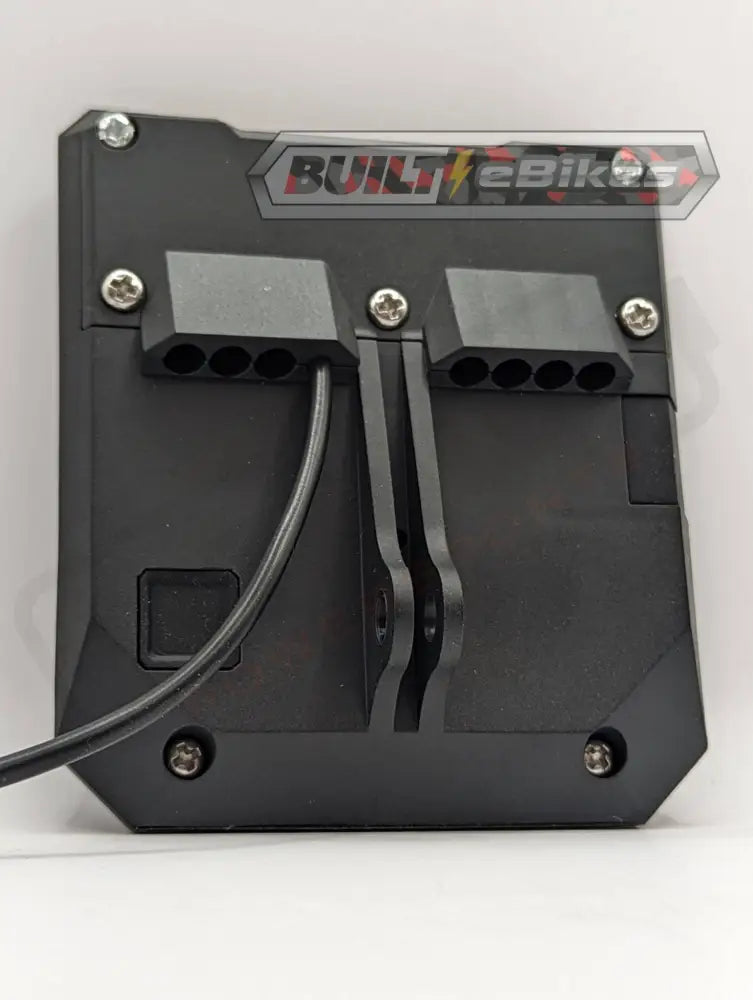

- User-friendly on-board computer interface
- Powerful regen braking can be bound to brake sensors. Use only front brake to lock both wheels!
- Activate reverse gear to easily get yourself out of tight spots!
- Push the limits of regen braking - highest rate can lock the wheel at speed!
- Learn more about your bike: track motor/controller temperature, amps and power in real time!
- Gain full control: adjust throttle
- All systems (lights, kickstand sensor, tilt sensor, throttle, key) will work
Specifications:
Maximum power: 27kw
Nominal power: 10kw
Voltage range: 20-90V
Phase, max: 500A
Battery, max: ~350A
Supply out: 12V 1A
Operating Temperature Range: -30°C to 80°C

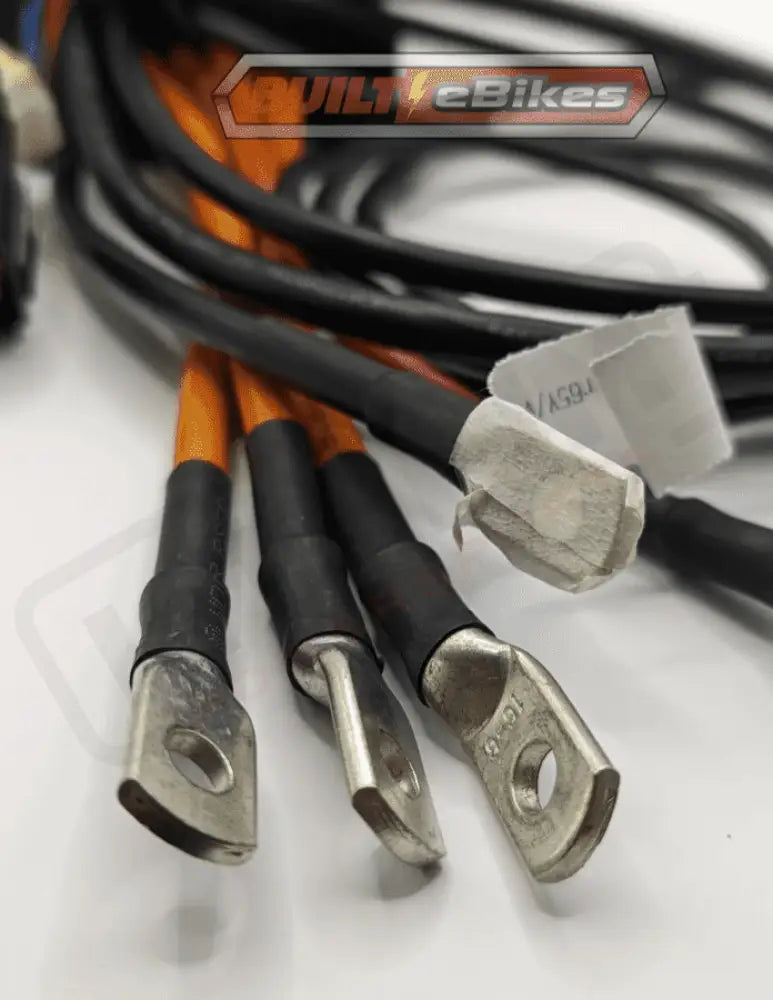

Phase wires: 7AWG terminals
Battery wires: 8AWG XT150
Control modes: Square, sensorless, FOC, charger
Protection: Temperature and hardware overcurrent protection
Sleep current less: <300uA
Protection class: IP54
Size, without wires: 86х43х185 mm
Weight: 1300 g
Firmware: https://docs.nucular.tech/doku.php?id=en:firmware
Controller manufacturer: https://nucular.tech/
