GEARBOX (MX3 / MX4) - Lithium Powersports

GEARBOX (MX3 / MX4)

by TALARIA
SKU
Sold out
$0.99 - $389.99
$1.99
$0.99 - $389.99
$1.99

Fast & Free Shipping on Most Orders.
Low Price Guarantee ā€“ Weā€™ll match or beat any authorized U.S. dealerā€™s price (conditions apply).
Financing Available ā€“ Flexible payment options (conditions apply).
Authorized U.S. Dealer for Every Brand We Sell.
Factory warranty coverage applies only to units originally sold by authorized U.S. dealers.
Have questions? Call or text 877-376-6380

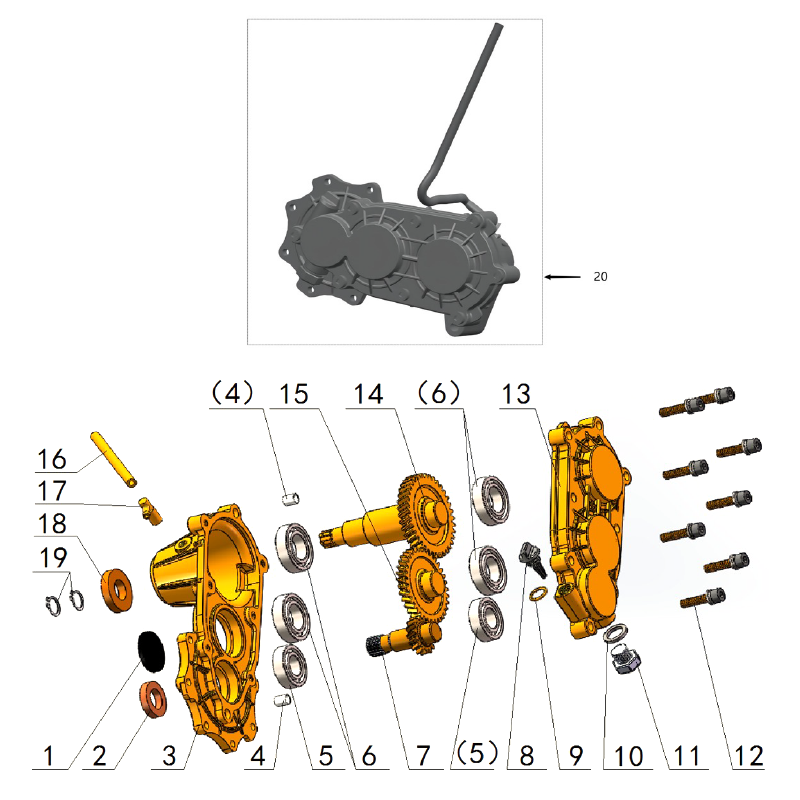

NUMBER REFERENCE NAME PRICE
 FITMENT
1 22084-56000-000 Anti-Dust Cap USD $1.99 (Talaria Sting MX3 / MX4)
2 12652-56000-000 Oil Seal (20x35x7) USD $7.99 (Talaria Sting MX3 / MX4)
3 22010-56000-000 Gearbox Left Cover (Housing) USD $55.99 (Talaria Sting MX3 / MX4)
4 22061-56000-000 Gearbox Dowel Pin (10x12) USD $1.99 (Talaria Sting MX3 / MX4)
5 13223-56000-000 Bearing 6004 (20x42x12) USD $10.99 (Talaria Sting MX3 / MX4)
6 13224-56000-000 Bearing 6005 (25x47x12)
 USD $10.99 (Talaria Sting MX3 / MX4)
7 22030-56000-000 Power Input Shaft Gear USD $82.99 (Talaria Sting MX3 / MX4)
8 22074-56000-000 Oil Dipstick USD $ 1.99 (Talaria Sting MX3 / MX4)
9 12551-56000-000 O-Ring (Dipstick) (13.2x2.65) USD $1.99 (Talaria Sting MX3 / MX4)
10 10741-56000-000 CrushĀ Washer (Drain Plug) (M16) USD $0.99 (Talaria Sting MX3 / MX4)
11 22073-56000-000 Magnetic Oil Drain Bolt USD $2.99 (Talaria Sting MX3 / MX4)
12 10527-56000-000 Socket Cap Bolt DIN7984 (M8x35) USD $0.99 (Talaria Sting MX3 / MX4)
12.1 10724-56000-000 Washer GB/97.1 (M8) USD $0.99 (Talaria Sting MX3 / MX4)
12.2 10704-56000-000 Lock Washer GB/93 (M8) USD $0.99 (Talaria Sting MX3 / MX4)
13 22020-56000-000 Gearbox Right CoverĀ  USD $63.99 (Talaria Sting MX3 / MX4)
14 22050-56000-000 Power Output Shaft Gear USD $119.99 (Talaria Sting MX3 / MX4)
15 22040-56000-000 Power Mid. Transmission Shaft Gear USD $100.99 (Talaria Sting MX3 / MX4)
16 22085-56000-000 Gearbox Vent Hose USD $2.99 (Talaria Sting MX3 / MX4)
17 22082-56000-000 Gearbox Breather Vent Connector USD $3.99 (Talaria Sting MX3 / MX4)
17.1 22083-56000-000 Gearbox Vent Hose Spring Clip USD $0.99 (Talaria Sting MX3 / MX4)
18 12653-56000-000 Oil Seal (25x40x7) USD $7.99 (Talaria Sting MX3 / MX4)
19 10787-56000-000 Circlip GB/894.7-17 USD $0.99 (Talaria Sting MX3 / MX4)
20 22000-56000-000 Complete Gearbox Assy. USD $389.99 (Talaria Sting MX3 / MX4)
