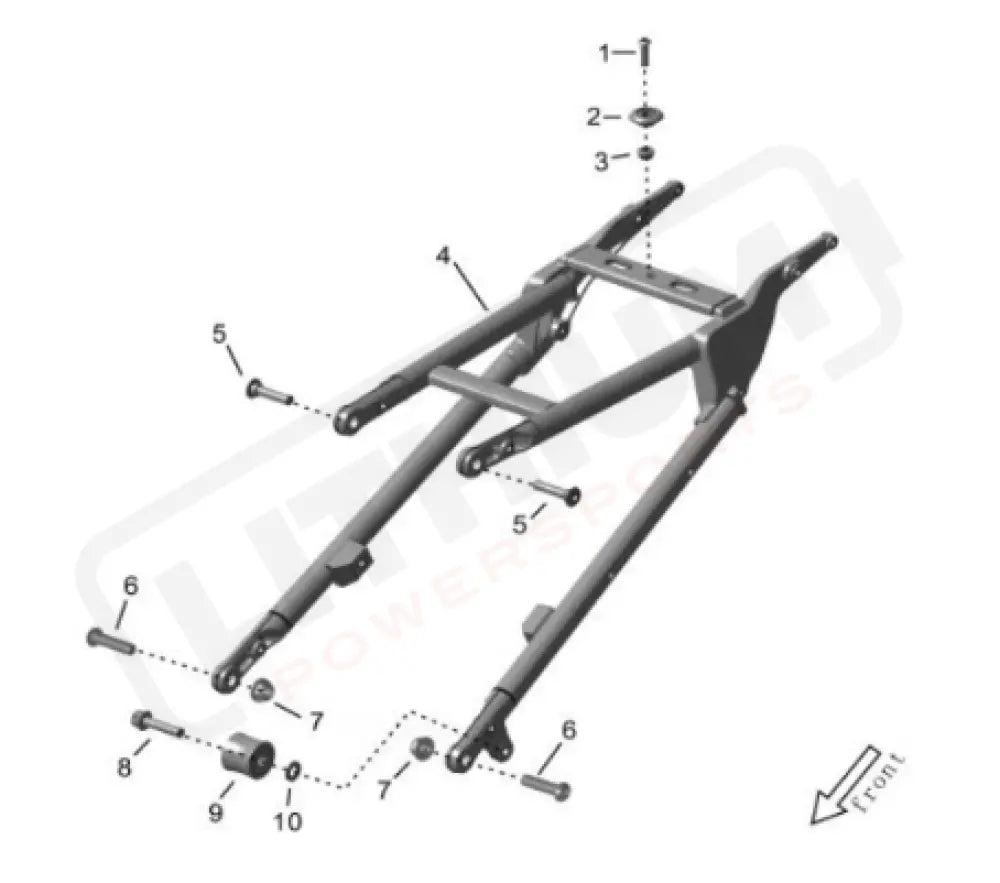

Surron Storm Bee SUBFRAME 01
Verify fitment before ordering. Click each product to confirm it matches the diagram callout. Item numbers point to specific parts, not universal fitment. Small hardware like bolts and washers may appear across multiple assemblies.
Quantity tip: Some parts are shared across sections - check the required quantity in the main diagram image above.
Back to diagrams
10 parts
-
Item 01
1 / 2$0.40Surron Storm Bee OEM Screw B3002 M6x20 B3-002-06-020-F0 Ref. #01
-
Item 02

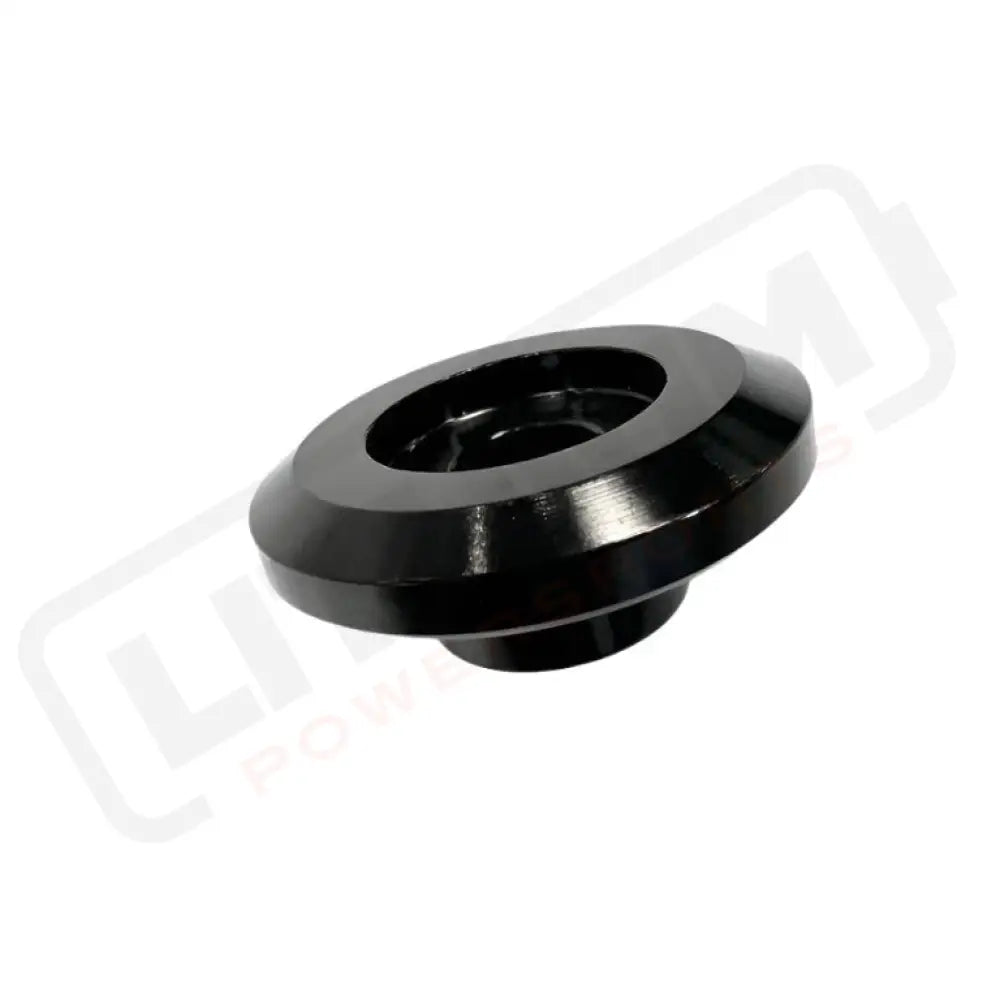

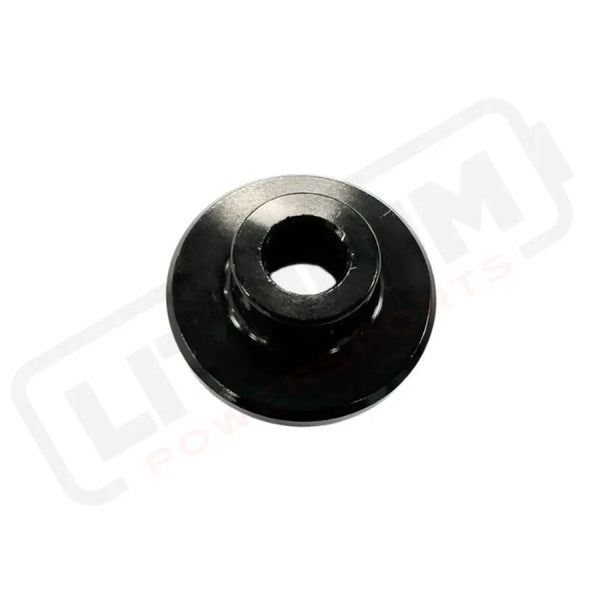

1 / 3$1.62Surron Storm Bee OEM Seat Rear Locking Bushing 32325-YQ5A-0000 Ref. #02
-
Item 03
1 / 4$0.40Surron Storm Bee OEM Nut B2015 M6 B2-015-06-F2 Ref. #03
-
Item 04
1 / 4$437.00Surron Storm Bee OEM Subframe 41520-YS1A-0000 Ref. #04
-
Item 05
$0.65Surron Storm Bee OEM Screw FB01001 M8 FB01-001-08-030-F2 Ref. #05
-
Item 06
$0.65Surron Storm Bee OEM Screw B3002 M10x45 B3-002-10-045-F0 Ref. #06
-
Item 07
$0.40Surron Storm Bee OEM Nut B2006 M10 B2-006-10-F2 Ref. #07
-
Item 08
$0.40Surron Storm Bee OEM Screw B1008 M8x40 B1-008-08-040-F2 Ref. #08
-
Item 09
1 / 2$9.69Surron Storm Bee OEM Chain Roller 13222-YS1A-0000 Ref. #09
-
Item 10
1 / 2$0.40Surron Storm Bee OEM Washer B4001 d8 B4-001-08-F2 Ref. #10
