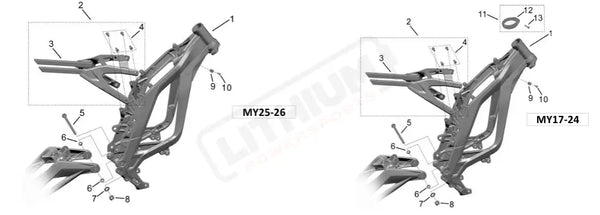

Surron Light Bee FRAME & SUBFRAME & SWINGARM
Verify fitment before ordering. Click each product to confirm it matches the diagram callout. Item numbers point to specific parts, not universal fitment. Small hardware like bolts and washers may appear across multiple assemblies.
Quantity tip: Some parts are shared across sections - check the required quantity in the main diagram image above.
Back to diagrams
15 parts
-
Item 02$275.70Ref. #02 — FRAME & SUBFRAME & SWINGARM Surron Light Bee X OEM Subframe Assy. (41520-YQ2A-Z1) - SKU 41520-YQ2A-Z1 Model Year All LBX Model Years Genuine Surron OEM replacement part. In...
Required qty 1 -
Item 03$330.00Diagram Ref. #03 Surron Light Bee X OEM Subframe Assy. All LBX Model Year 41520-YQ2A-0000
Required qty 1 -
Item 04$0.60Ref. #04 — FRAME & SUBFRAME & SWINGARM Ref. #07 — FRAME METAL ACCESSORIES Surron Light Bee X OEM Screw B1009 M8*20 - SKU B1-009-08-020-F0 Model Year All LBX Model Years Genuine Surron...
Required qty 4 -

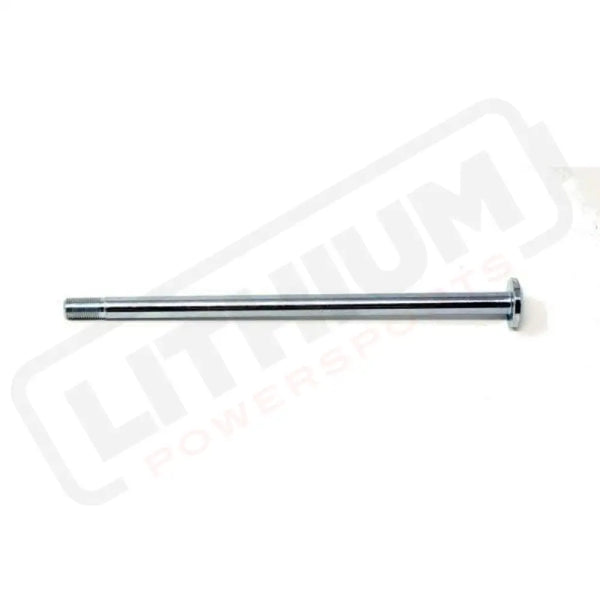

Item 05$25.99Diagram Ref. #05 Surron Light Bee X OEM Swingarm Pivot Shaft Model Year 2026 61260-YQ2A-0000
Required qty 1 -
Item 06$1.99Diagram Ref. #06 OEM replacement frame and swingarm bushing (1 pc). Model Year 2017-2025
-
Item 06$1.99
Diagram Ref. #06 OEM replacement frame and swingarm bushing (1 pc). Model Year 2026
-

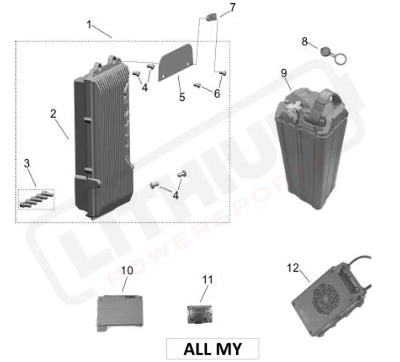

Item 06$0.40Ref. #06 — Controller, Battery, Charger Ref. #10 — FRAME, SUBFRAME, SWINGARM Ref. #11 — SWINGARM ASSEMBLY Ref. #13 — FENDER KIT Surron Light Bee X OEM Screw B3002 M5*10 - SKU B3-002-05-010-F0...
Required qty 1 -
Item 07$0.40Diagram Ref. #07 Surron Light Bee X OEM Washer FB5009 Φ12.5*Φ24*0.5 Model Year 2026 FB05-009-F0
Required qty 1 -
Item 07$0.40Ref. #07 — Controller, Battery, Charger Ref. #09 — Frame Surron Light Bee X OEM Nylon Clamp Model Year 2017-2024 81137-YQ2A-0000
Required qty 1 -
Item 07$0.40Diagram Ref. #07 Surron Light Bee X OEM Washer B4001 d10 Model Year 2017-2025 B4-001-10-F2
Required qty 1 -
Item 08$25.99Diagram Ref. #08 Surron Light Bee X OEM Swingarm Pivot Shaft 40Cr-10*198-M10*1.0 MY17-25 61260-YQ2A-0000
Required qty 1 -

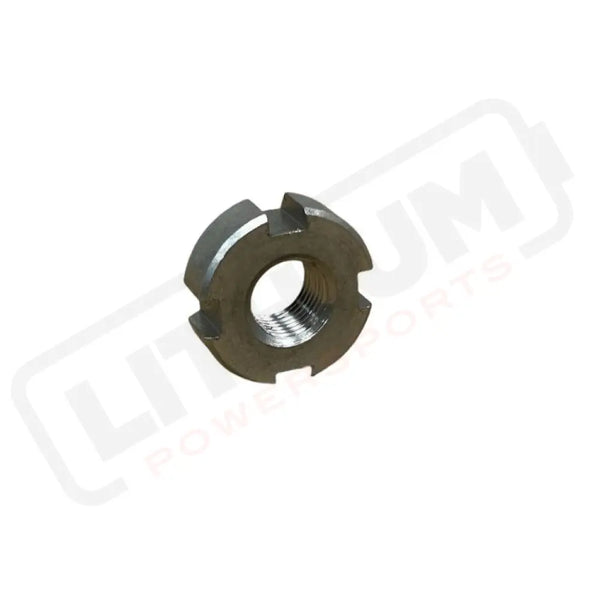

Item 08$4.99Diagram Ref. #08 Surron Light Bee X OEM Nut B2013 (M10*1.0) Model Year 2026 FB02-010-12-F2
Required qty 1 -
Item 09$0.40Ref. #09 — Frame Ref. #07 — Controller, Battery, Charger Surron Light Bee X OEM Nylon Clamp clip81153 Model Year 2026 81153-NM1A-0000
Required qty 1 -

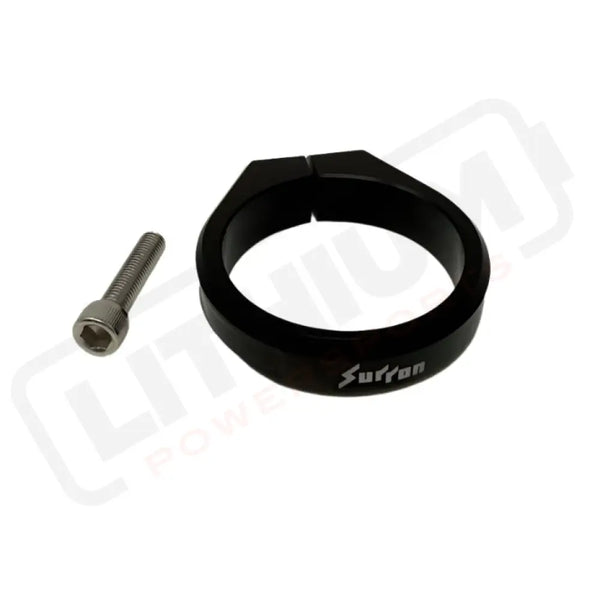

Item 11$38.50Ref. #11 — FRAME & SUBFRAME & SWINGARM Surron Light Bee X OEM (MY17-24) Light Bee Reinforced Riser Clamp Assy - SKU 41115-YQ2A-Z1 Model Year 2017-2024 Genuine Surron OEM replacement p...
Required qty 1 -
Item 13$0.40- Surron Light Bee OEM Screw B30014 M7*30 FB03-014-07-030-F9 Model Year 2017-2024
