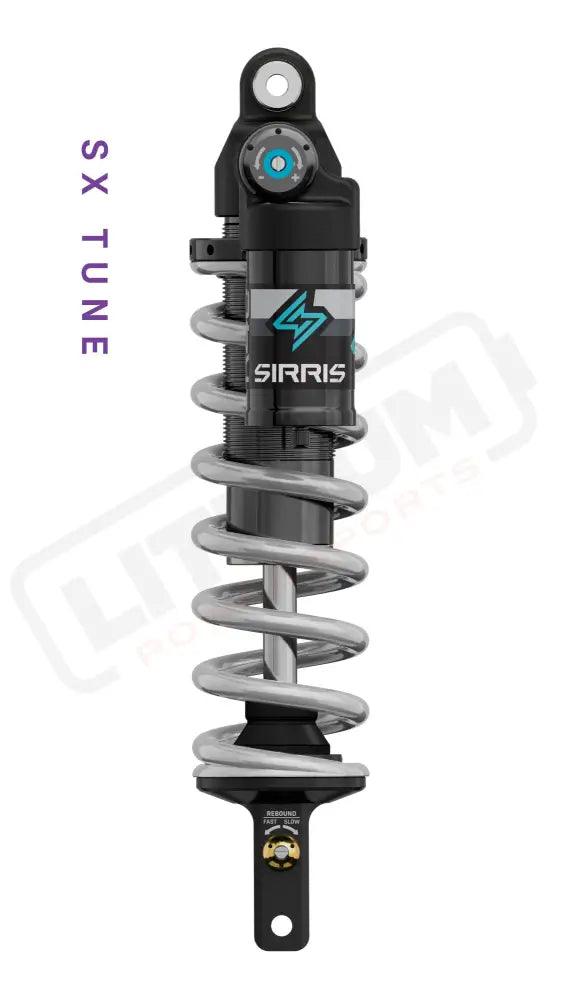

Sirris offers two weight ranges to choose from when selecting your SX Tune R46 shock. (Listed weight ranges are rider weight without riding gear on. 15 pounds of riding gear is calculated into the weight ranges)
< 160 lbs (Light = 115 N/mm spring)
> 160 lbs (Medium = 115 N/mm spring with different clicker settings)
PRODUCT SPECS:
Architecture
Piggyback, steel spring
Stroke
84.2 mm
Length
320 mm
Weight
3.9 lbs / 1.76 kg without spring
Piston
High flow Ø46 mm, CNC 6061 billet aluminum, type 3 hard anodized coating
Piston band
Hard band
Shaft
Ø16 mm OD chrome-plated, induction hardened steel, hollow, Ø 5.5 mm ID
Shock body
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread
Spring retainer
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread, with locking feature, manual adjust
Bottom out
SX firm MCU bumper
Top out
Rubber bumper
Damping
Tunable compression and rebound
Reservoir
Pressurized with floating piston
Adjusters
External compression and rebound adjustment
Seals
HNBR
