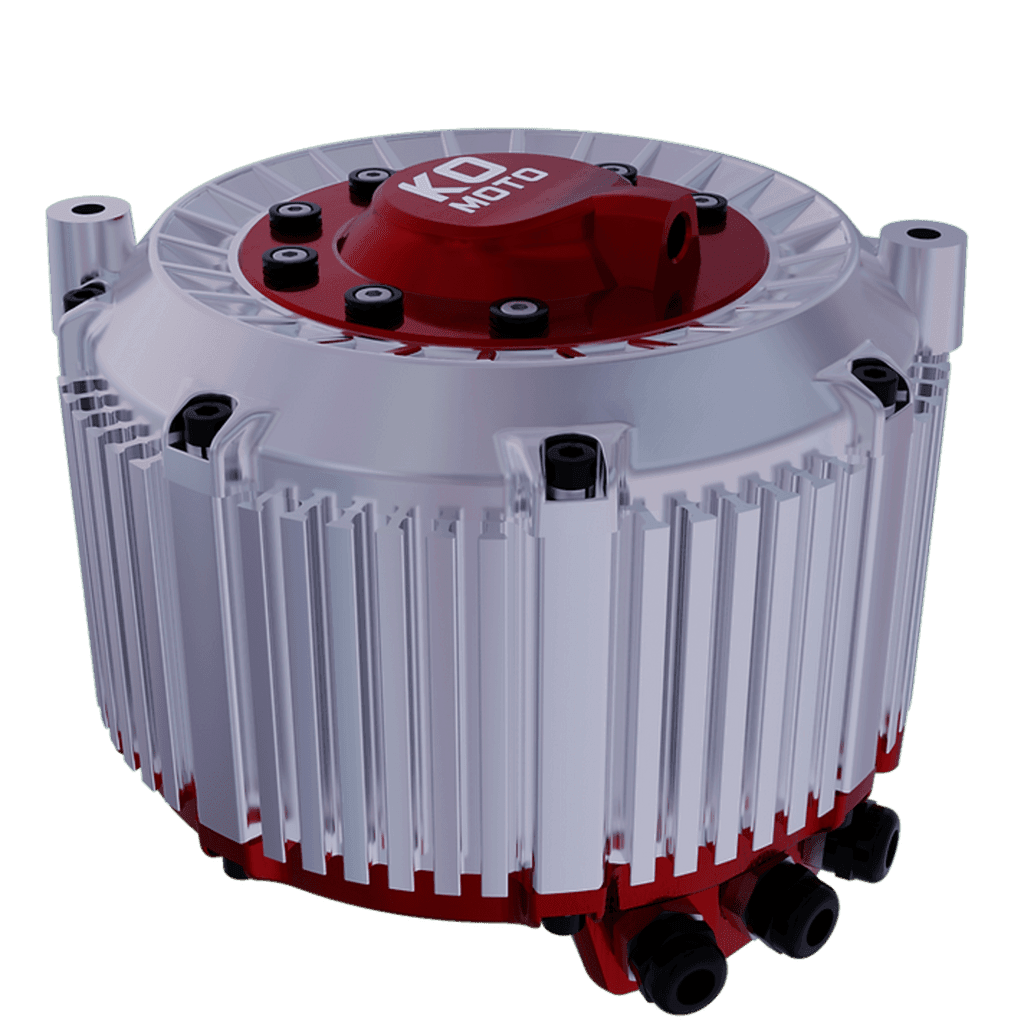

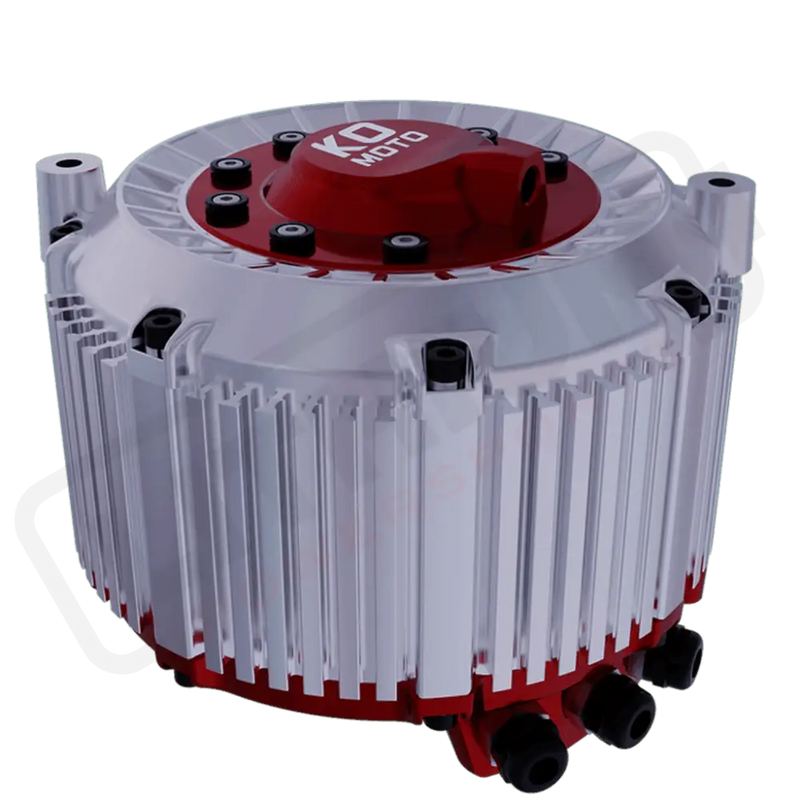

KO Moto RS Motor Upgrade

by KO Moto
SKU KOMOTBLU
Sold out
Original price $1,599.89 - Original price $1,599.89
Original price
$1,599.89
$1,599.89 - $1,599.89
Current price $1,599.89
Color: Blue

NOTE: No import fees or shipping fee's for USA customers. Ordering from the manufacturer will result in the same price after shipping and import fees.

Lithium Powersports is proud to offer the best direct drop-in replacement motor for the Surron and Segway Platforms. We had begun testing and tuning with the KO Moto team as soon as they were available, and are proud to say the new golden standard is here! You can now run higher power levels with a greatly reduced risk of motor over-temp settings being a factor.

Many Riders with BAC controllers and stock motors experience over-temp shutdowns and throttled power with even light trail riding in higher power levels. This greatly throttles the potential of the Surron Frame, but no more. We have personally not hit over=temp shutdown on any of our bikes and are very pleased with the amount of tunability and performance these new motors.

Be one of the first to receive the KO Moto Surron upgrade motor. Designed from the ground up to give unmatched torque and power, without suffering from all of the issues that plague the stock Surron motor & controller offering.

Both the motor and controller are designed to be a plug and play option in the Surron and are easy to fit, using the same cabling and also the same default Surron display unit. Gone is the need to upgrade your display unit and run additional extra cabling across your bike.

Features

  • Peak 35KW Power (Based upon motor rating, your battery will determine the power you can produce)
  • 7075 Aircraft grade billet machined end caps and sensor cap
  • Stainless steel waterproof phase and sensor wire glands
  • Internal magnet motor (IPM)
  • Cold Rolled  SAE 1045 Steel rotor Shaft
  • Custom KO designed and patented rotor and heat sink design allows heat soak dissipation on the ends of the stator
  • Max Torque @60v -52NM
  • Max stable rotor RPM: 12,000
  • Max Efficiency 97%
  • Motor Weight 10 Kg
  • IP67 ingress protection
  • KO patented internals pressure equalization system compatible
  • Cryo Cold Air Injection System
  • Cryo Rotor/Stator Anti Corrosion Coating
  • Industry Leading SKF bearing and seals for lowest rolling resistance and efficiency
  • Industry Leading 150°C SH50 Neo Magnets
  • Custom Waterproof designed and manufactured hall sensor with 12 month warranty against water/moisture damage.

Fitment

Surron LBX

Segway X260

Segway X160

Please view or SETUP GUIDE PAGE for setting up your controller or motor and to get the latest access to firmware updates

------------------------------

Surron PDF Install Guide
