OEM Parts
Bonnell 775 MX Parts
Verify fitment before ordering. Click each product to confirm it matches the diagram callout. Item numbers point to specific parts, not universal fitment. Small hardware like bolts and washers may appear across multiple assemblies.
Quantity tip: Some parts are shared across sections - check the required quantity in the main diagram image above.
67 parts
-

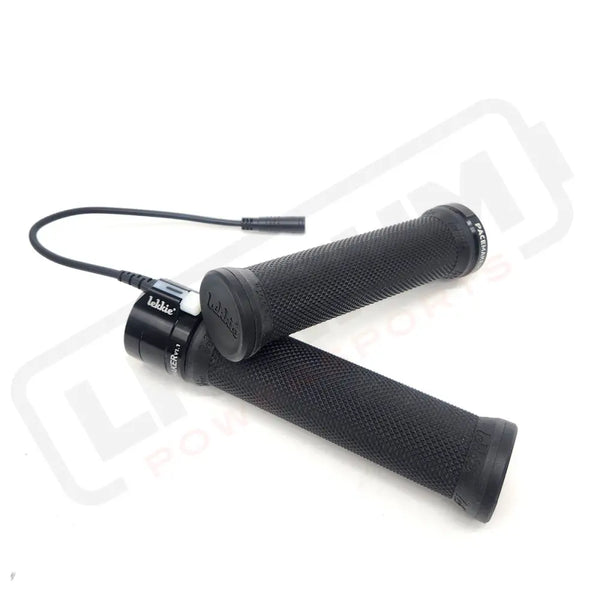

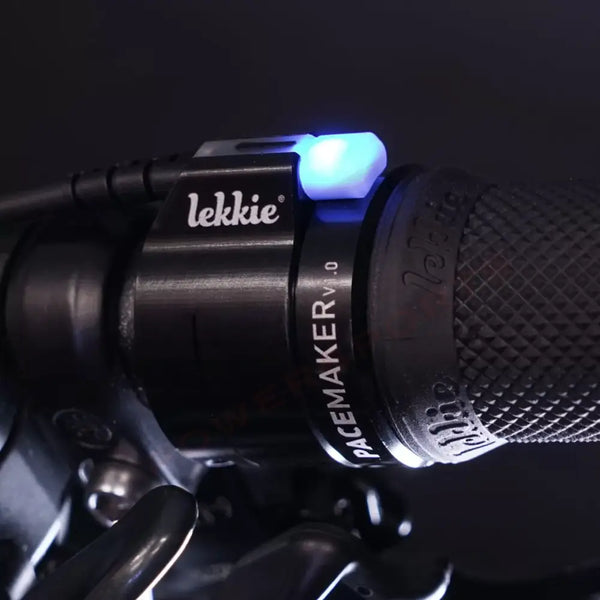

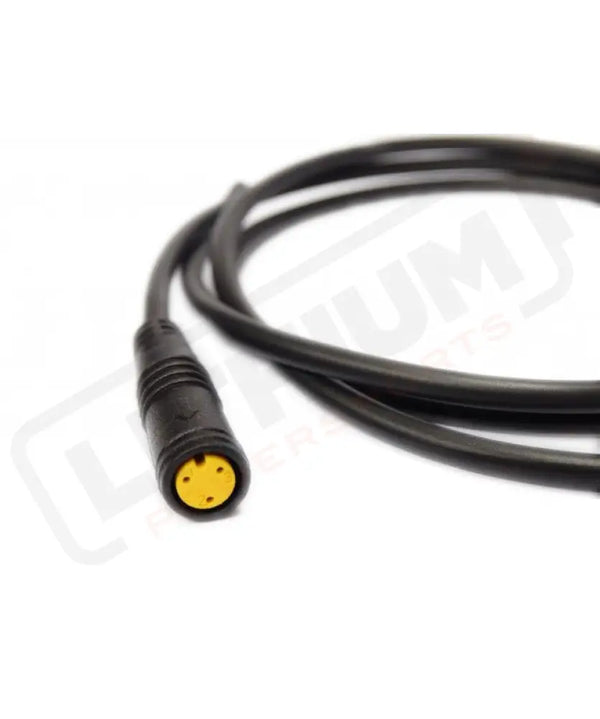

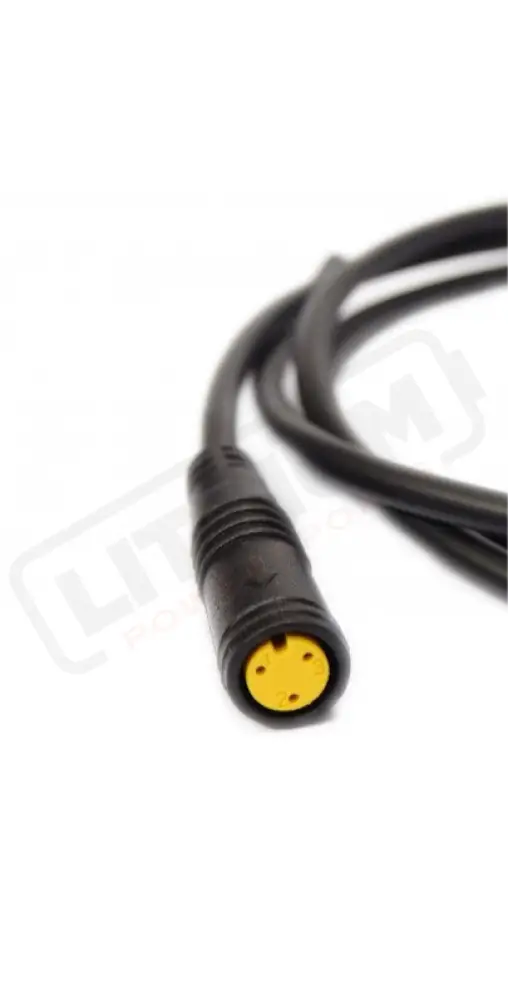

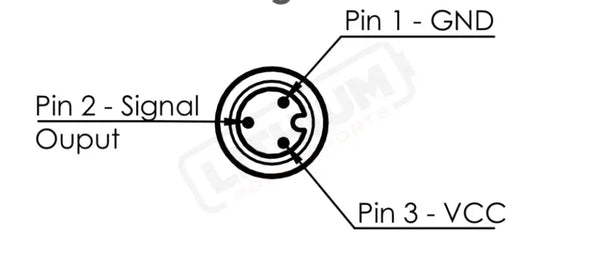

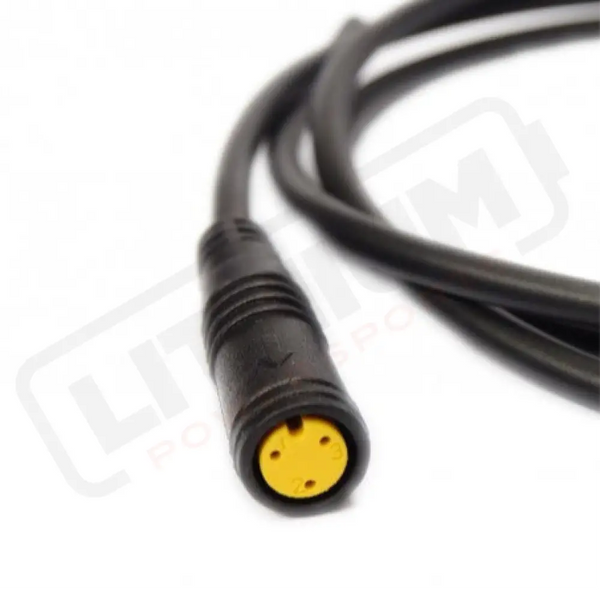

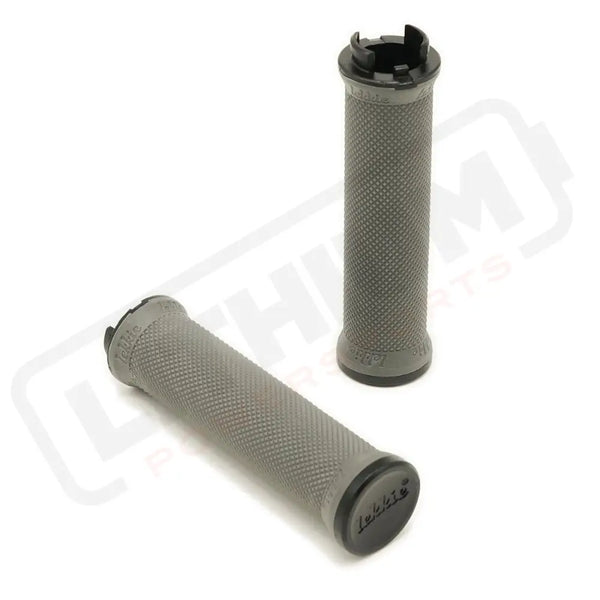

1 / 7$105.99Introducing the Pacemaker Electric Bike Throttle, a precision-engineered accessory designed exclusively for electric bikes and motorbikes. With over five years in development, this product is a te...
-
$39.99Bonnell 775 MX 11T 219H Sprocket Set Complete 11-tooth 219H primary-drive sprocket service set, including 11T sprocket, shaft bearing cover, key and snap ring. Transfers torque from the gearbox to ...
-

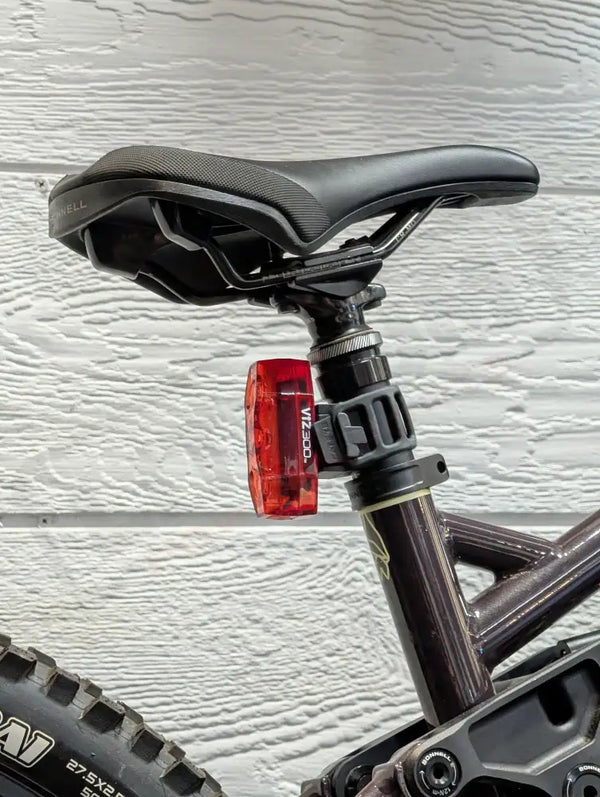

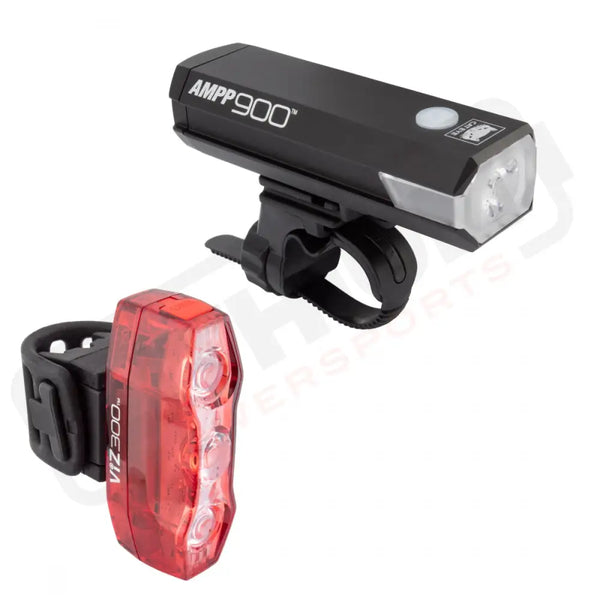

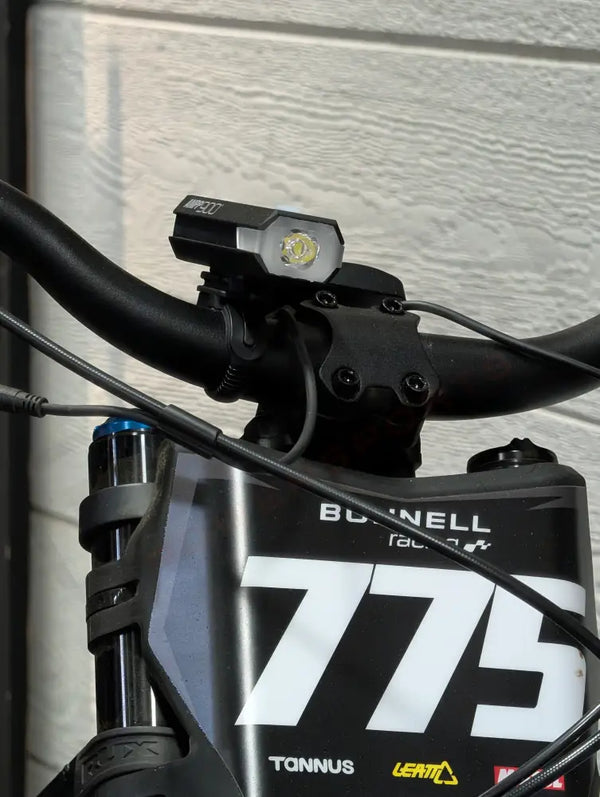

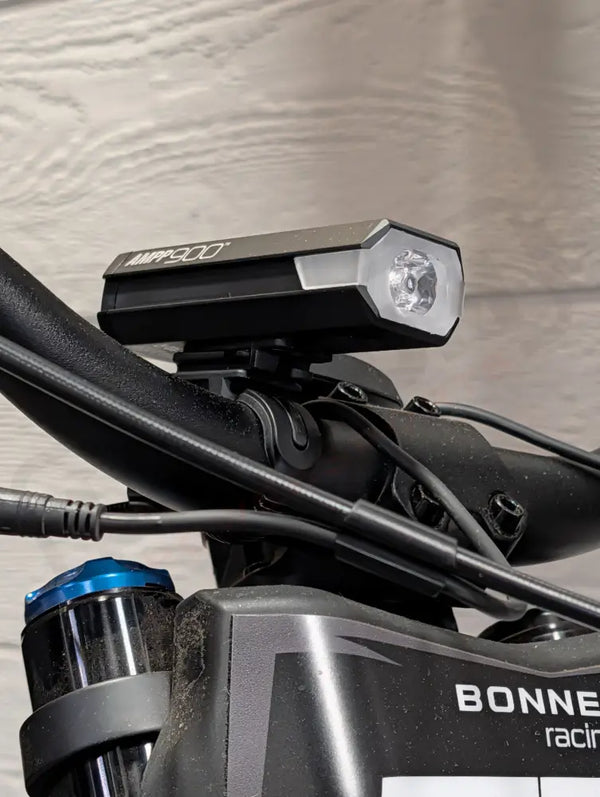

1 / 4$97.95Product Details High powered light set boasting a 900 lumen front light, paired with a 300 lumen rear light AMPP900 900 lumen headlight offers plenty of brightness for road or trail use Viz300 r...
-

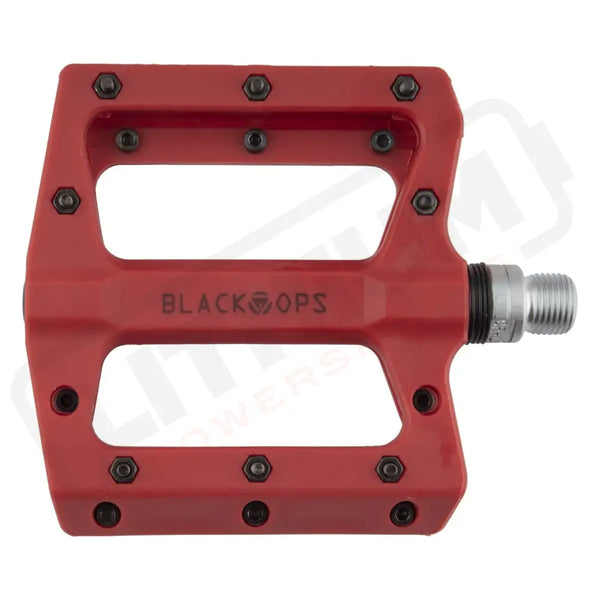

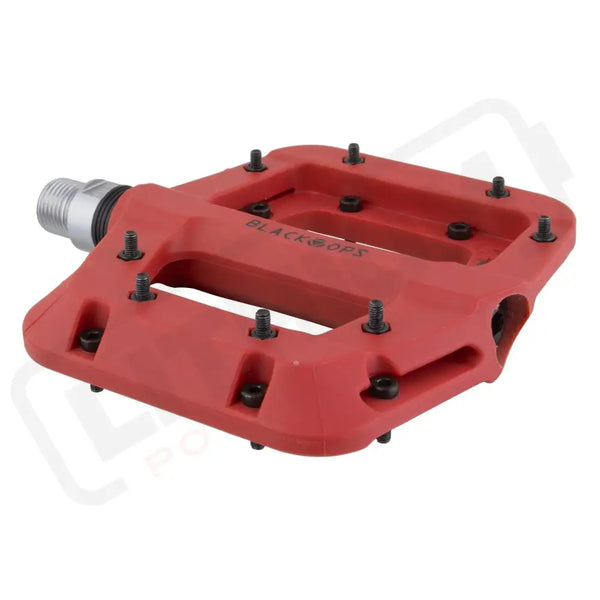

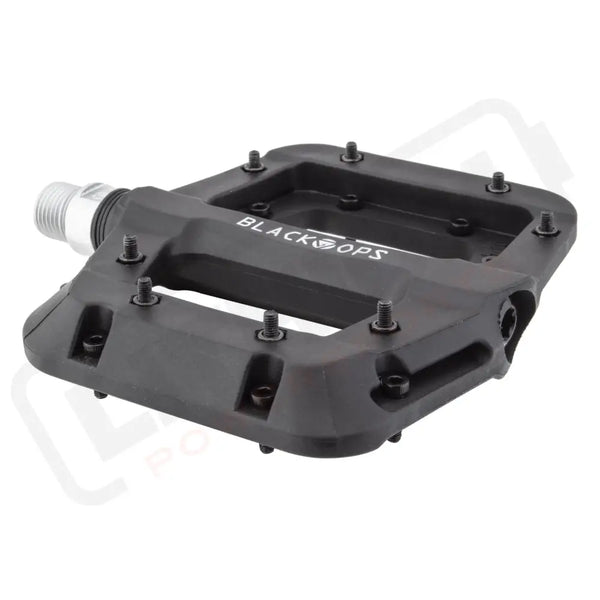

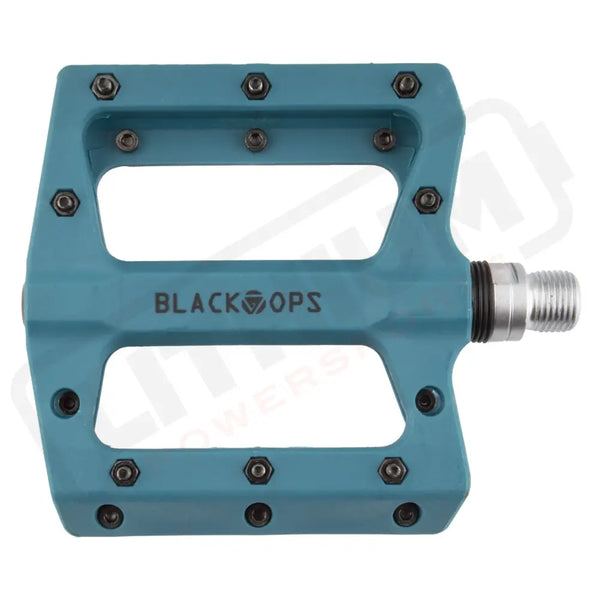

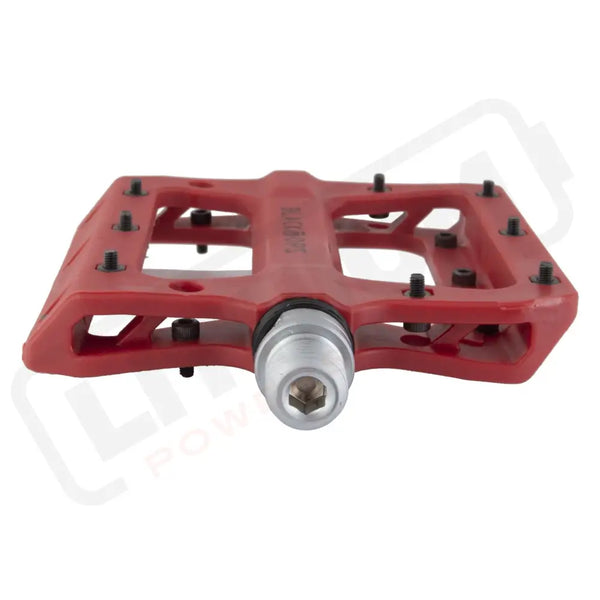

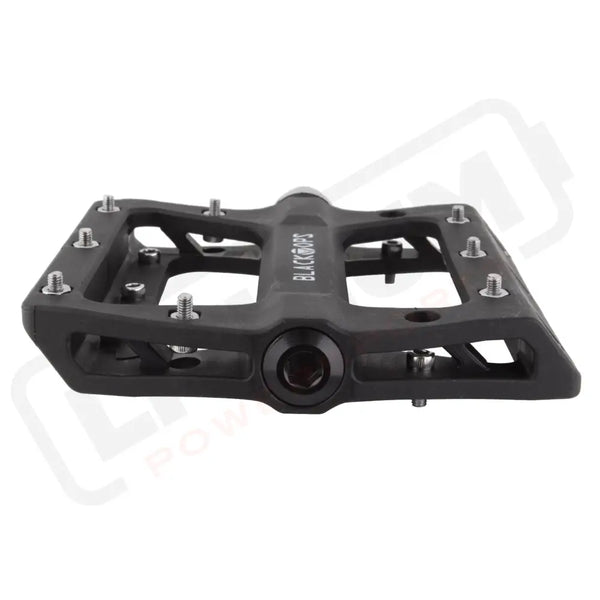

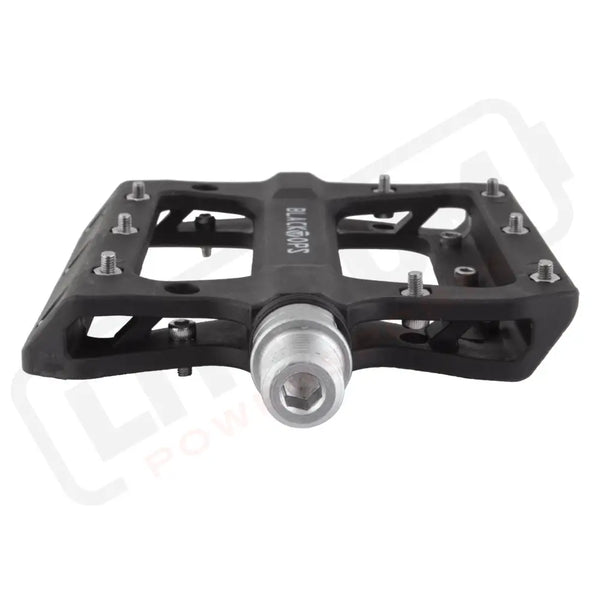

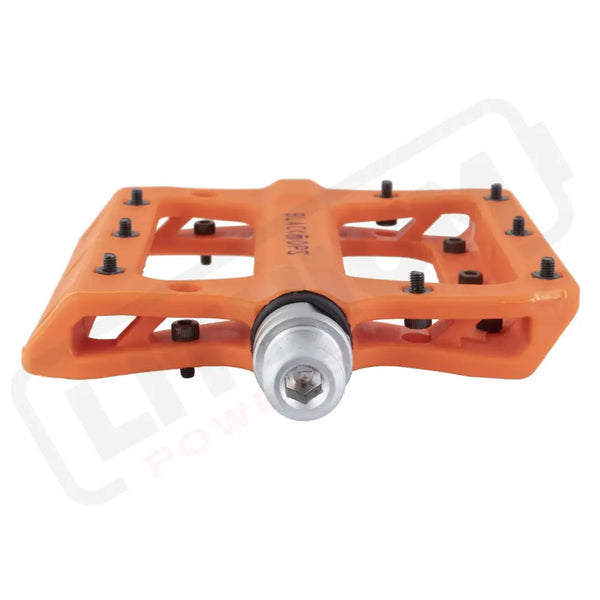

1 / 6$49.99Durable nylon fiber composite pedals with 3 sealed bearings and chromoly spindle Removable, M4 x 9mm steel pins and large 92 x 105mm platform
-

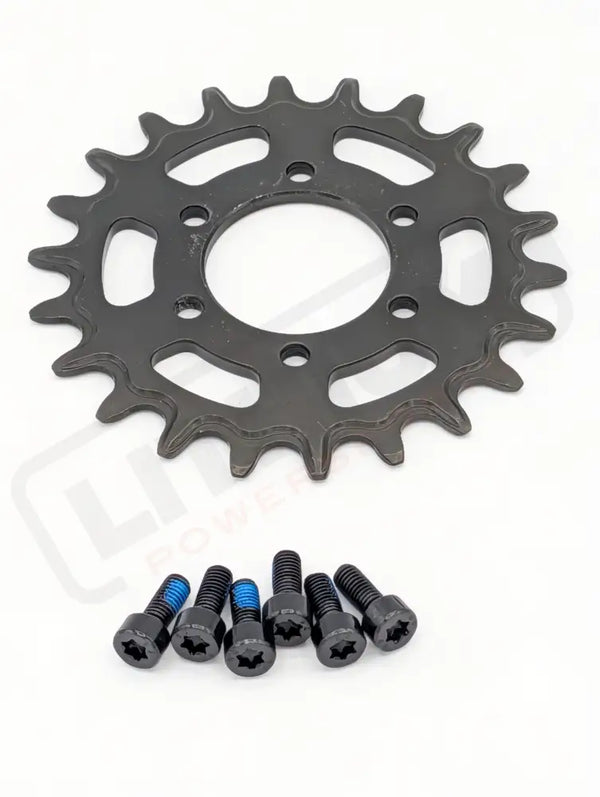

$39.99Bonnell 775 MX 22T Sprocket with Hardware 22-tooth rear sprocket with six mounting screws for the 775MX secondary drive. Faster top speed ~40 mph (~65 km/h), ideal for mixed terrain with moderate c...
-

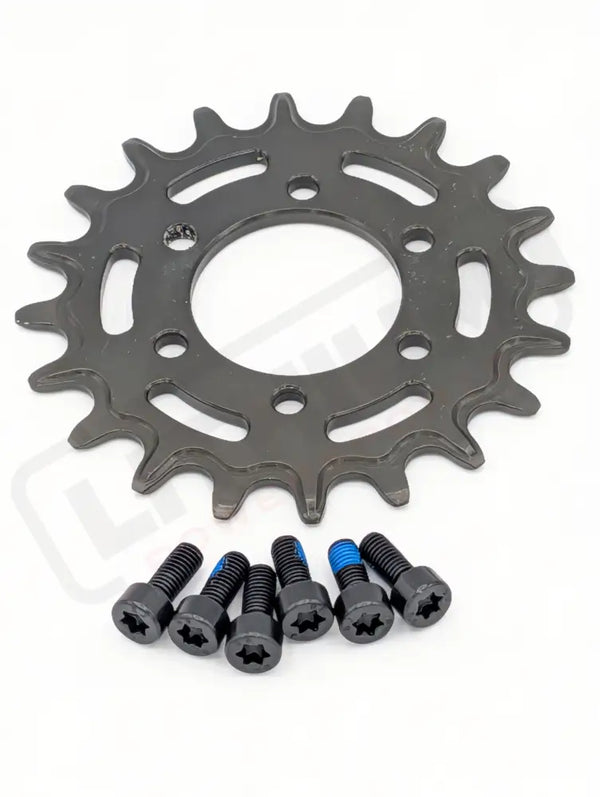

$39.99Bonnell 775 MX 20T Sprocket with Hardware 20-tooth rear sprocket with six mounting screws for the 775MX secondary drive. Faster top speed ~43 mph (~69 km/h), ideal for flatter terrain and lower gra...
-

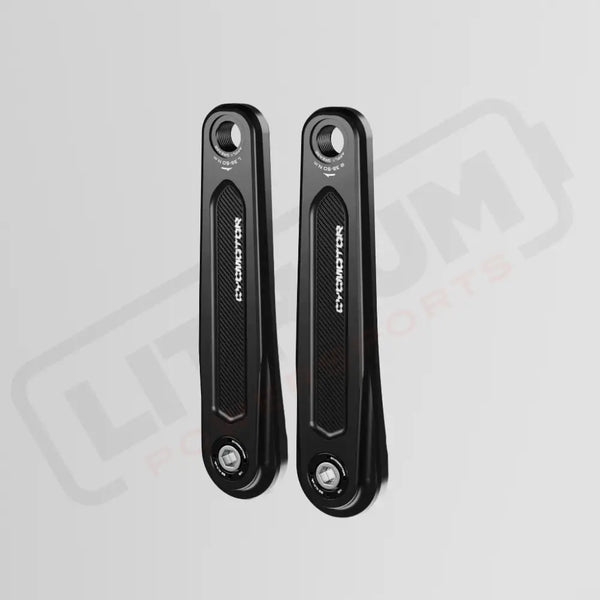

$78.99Bonnell 775 MX Crank Set 155mm 155 mm ISIS-interface left and right crank arms for the 775MX. The length improves ground clearance and reduces pedal strikes while retaining leverage for pedaling an...
-
$54.99Bonnell 775 MX 63T Chainring and Bolt Kit 63-tooth chainring sprocket with mounting bolts and nuts. Connects to the 219H motor chain. Part Number: B1205-63TKIT-01 Fits: Bonnell 775 MX Genuine Bo...
-
-
$39.99Bonnell 775 MX 28T Sprocket with Hardware 28-tooth rear sprocket with hardware for the 775 MX. Part Number: B1209-RPM28T-01 Fits: Bonnell 775 MX Genuine Bonnell OEM part
-
$76.99Bonnell 775 MX Front Chain Guide Assembly Complete V2 front chain-guide assembly for all 775MX sizes. Controls the high-torque chain path at the motor/primary drive and helps prevent derailment dur...
-

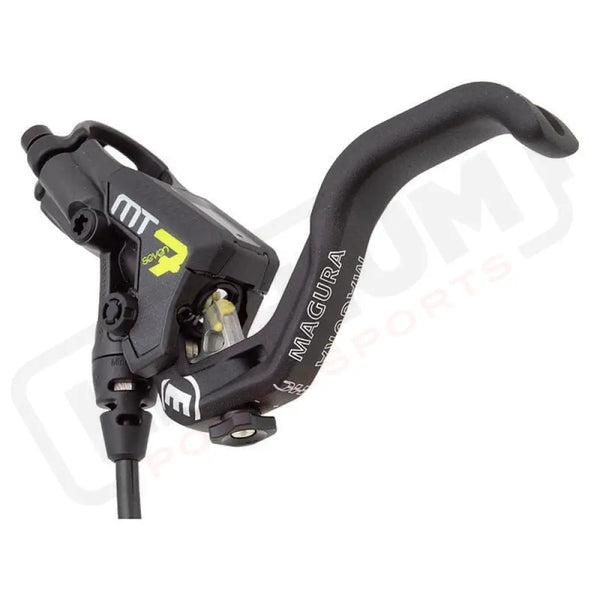

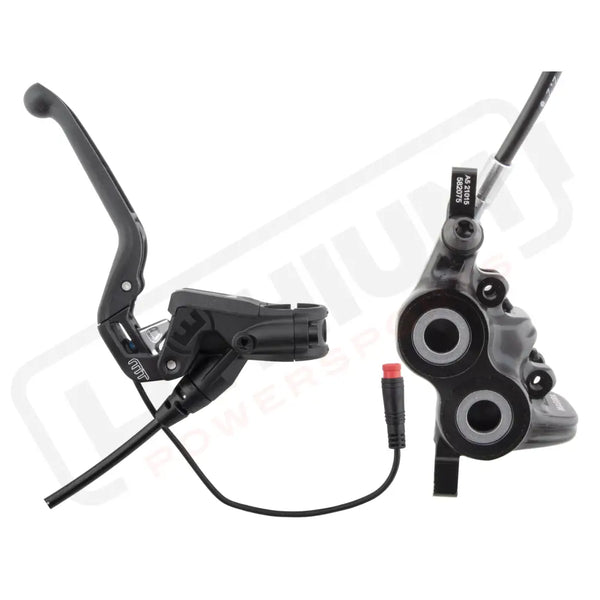

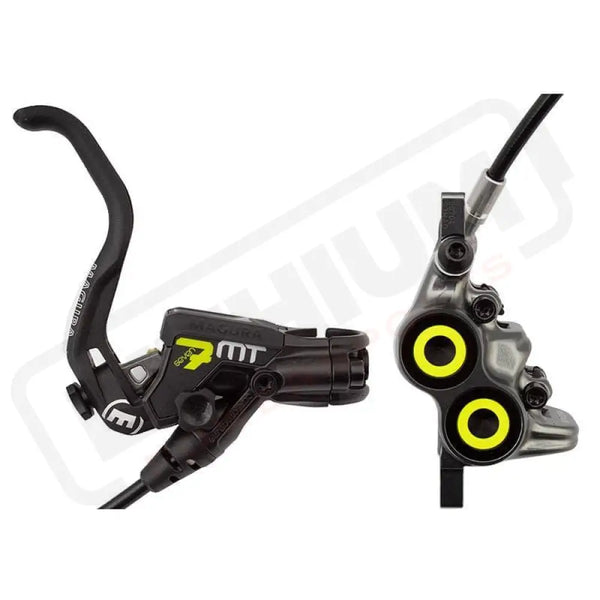

$197.00Specially developed for S-Pedelecs, the MT5e has an integrated switch for motor and brake light (2 pin connection) High braking force of 4 pistons and its fine modulation make the MT5e a sure-foot...
-
$54.99Bonnell 775 MX 38T Chainring with Hardware 38-tooth chainring sprocket with mounting bolts and nuts. Drives the KMC rear chain. Part Number: B1205-38TKIT-01 Fits: Bonnell 775 MX Genuine Bonnell ...
-

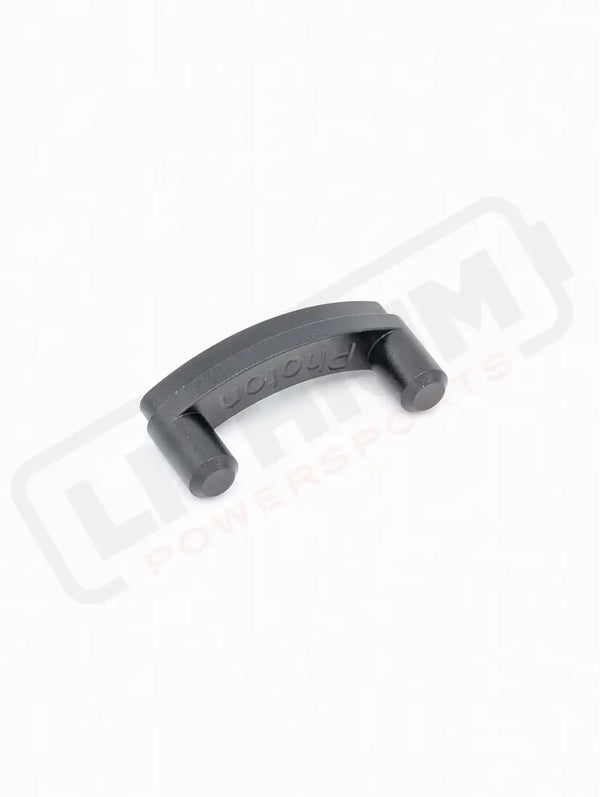

$8.99Bonnell 775 MX Chain Guide Indexer Chain-guide indexer that positions and aligns the front guide relative to the drivetrain. Correct indexing helps prevent chain rub and derailment under high torqu...
-
$39.99Bonnell 775 MX 26T Sprocket with Hardware 26-tooth rear sprocket with six mounting screws for the 775MX secondary drive. Boosts low-end torque for technical climbs, with a top speed of ~34 mph (~55...
-
$21.99Bonnell 775 MX Thumb Throttle Compact thumb-operated throttle control. Provides progressive motor command without a rotating grip and can be useful for riders who prefer a fixed hand position; veri...
-
$13.99Bonnell 775 MX 1-to-2 Harness Bonnell 1-to-2 electrical harness, approximately 513 mm long. Connects the throttle extension cable and display / joycon to the controller. Part Number: B2202-1T2BNL...
-

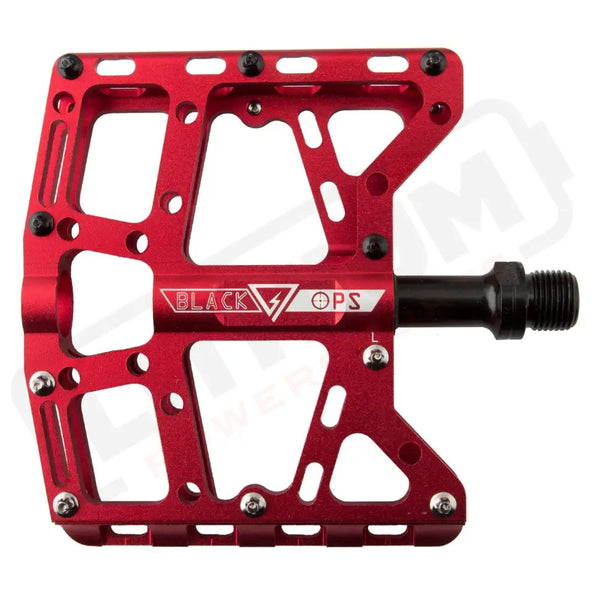

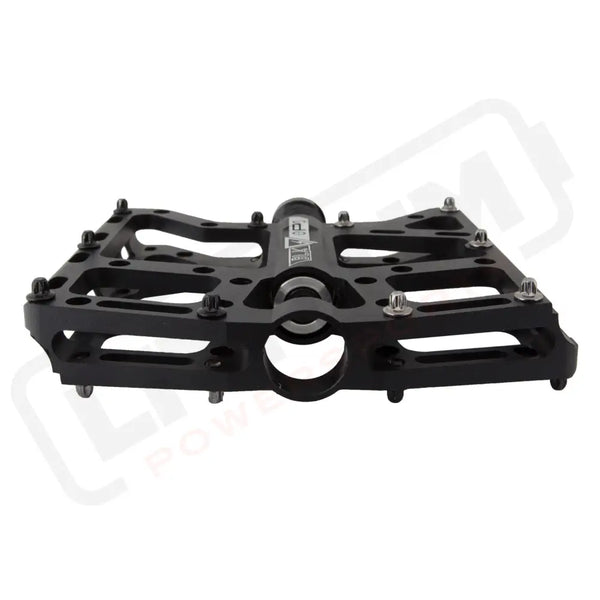

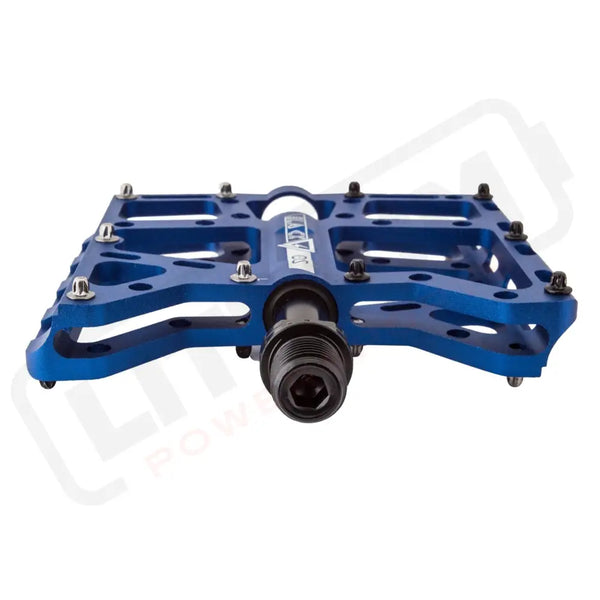

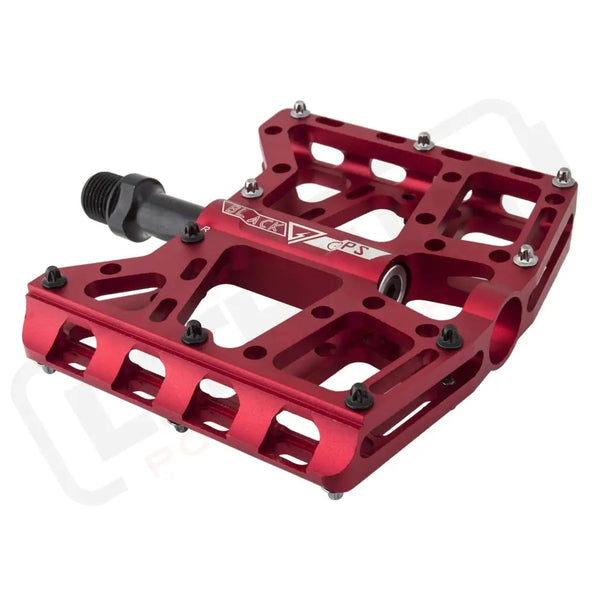

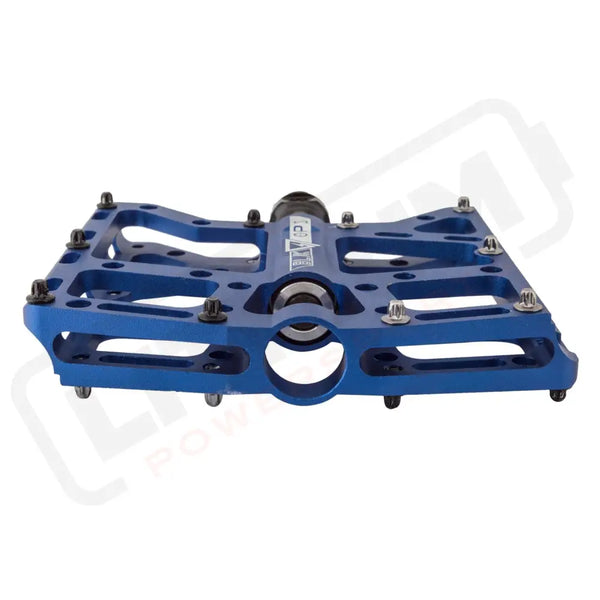

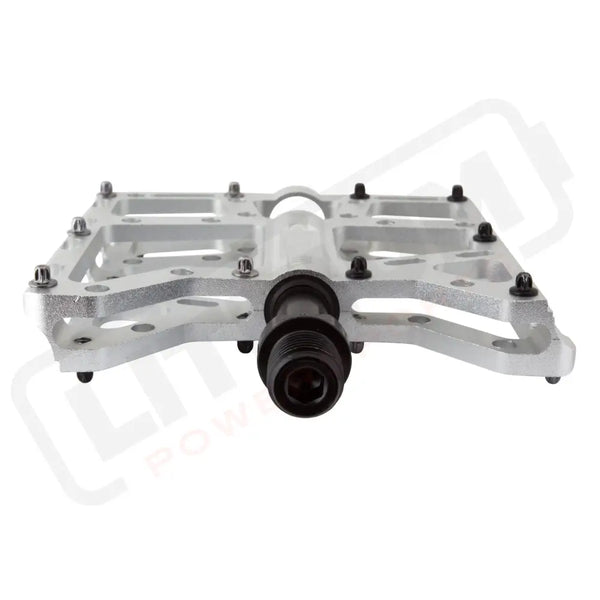

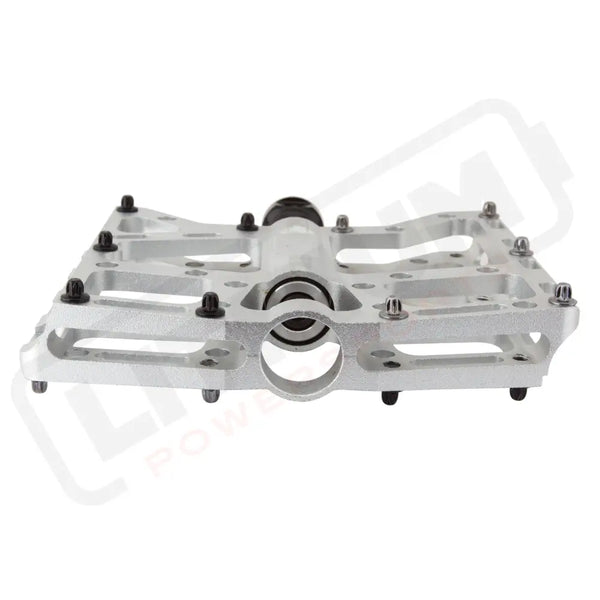

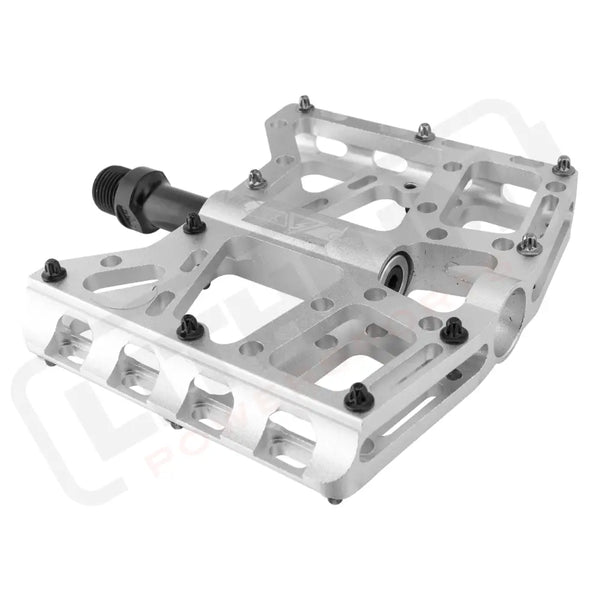

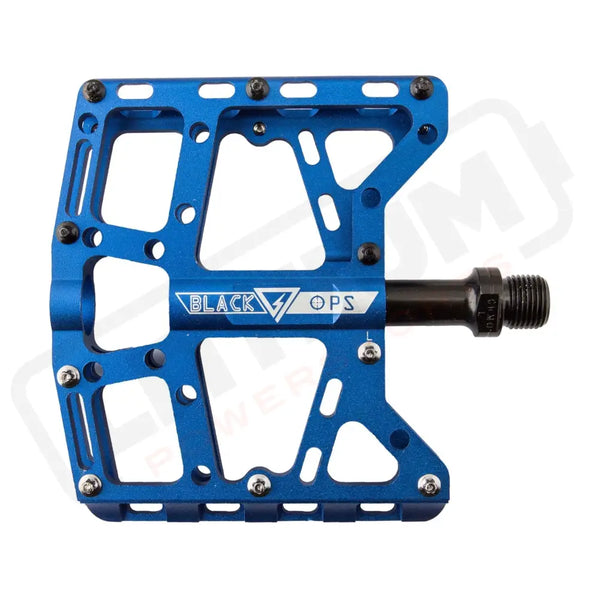

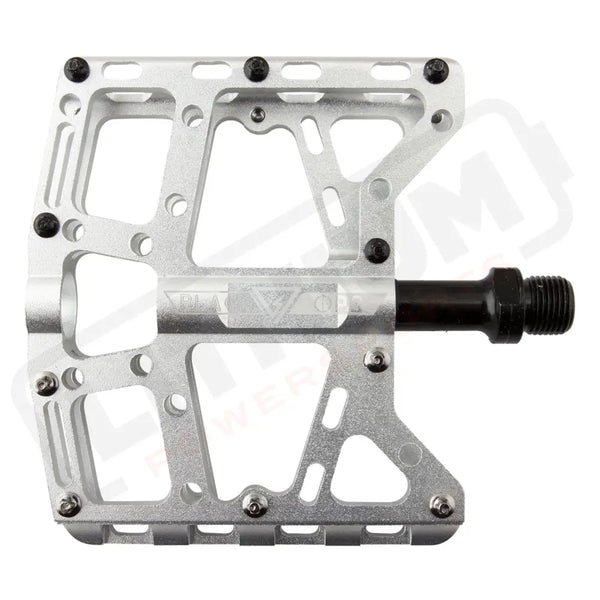

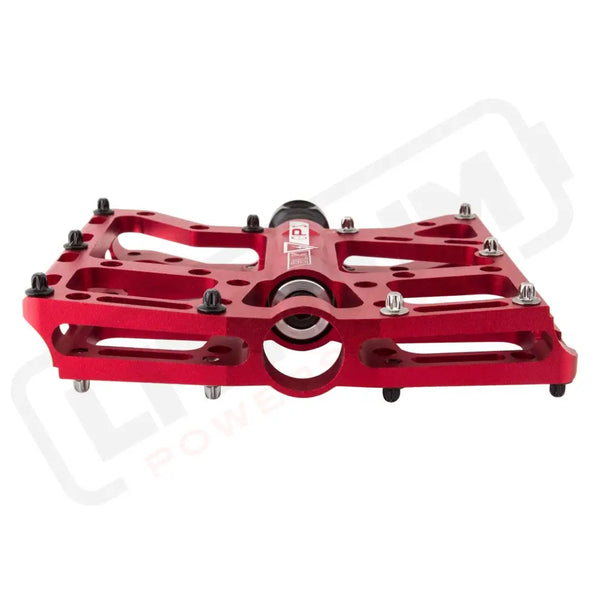

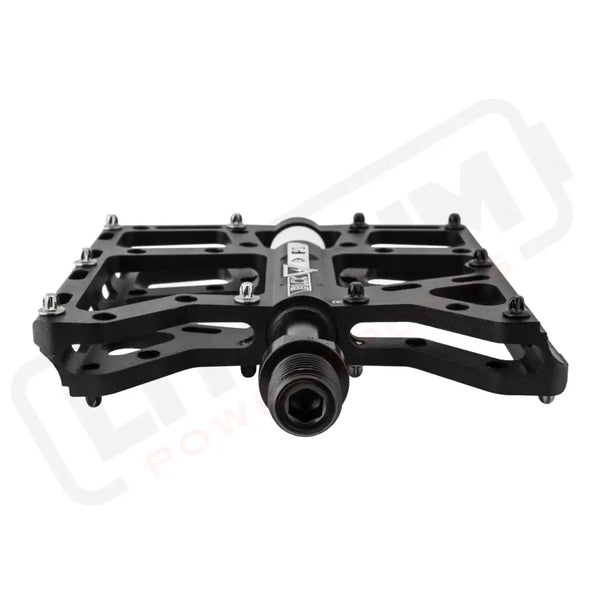

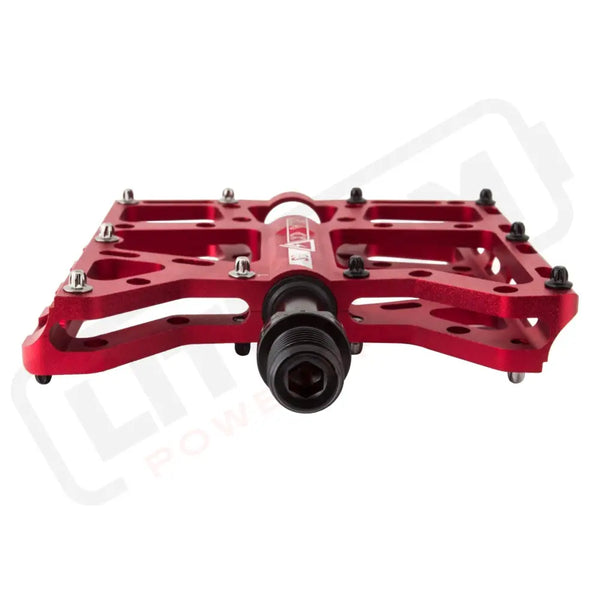

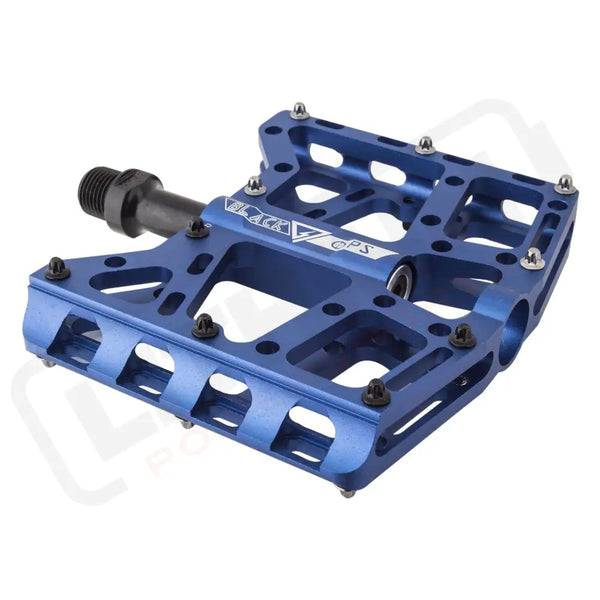

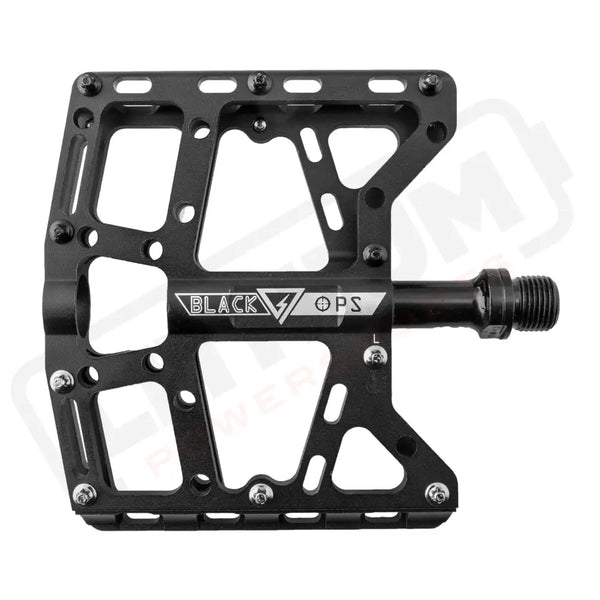

1 / 16$179.99CNC Machined ultralight body Large platform for extra stability 17mm thin platform for extra clearance Hardened chromoly replaceable pins Heat treated chromoly spindle 395g pair
-

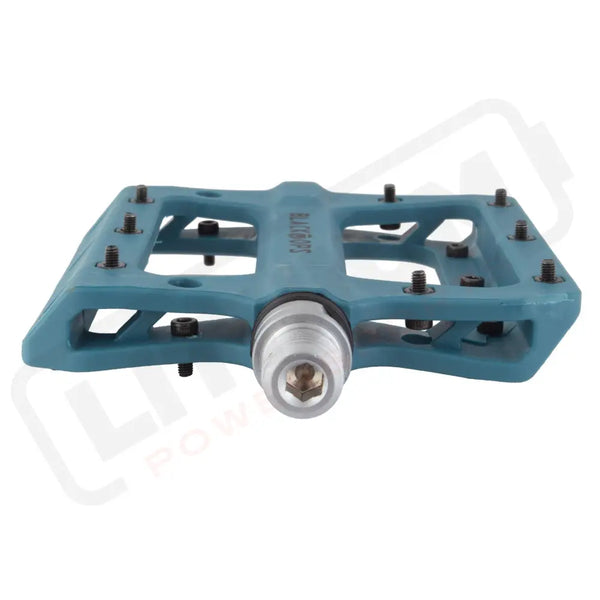

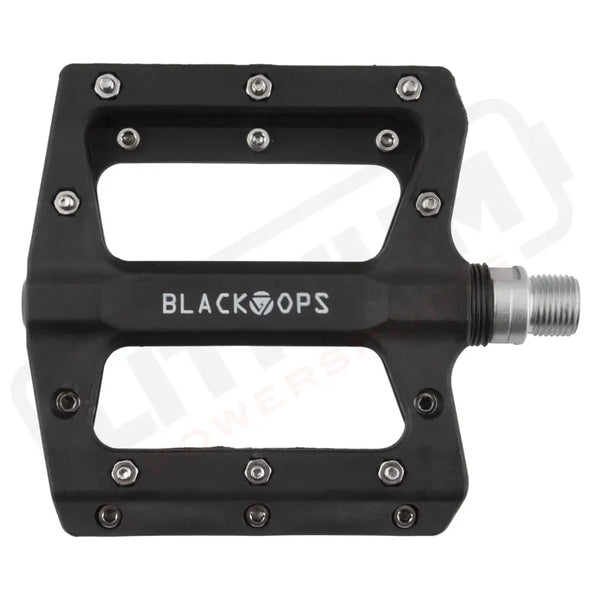

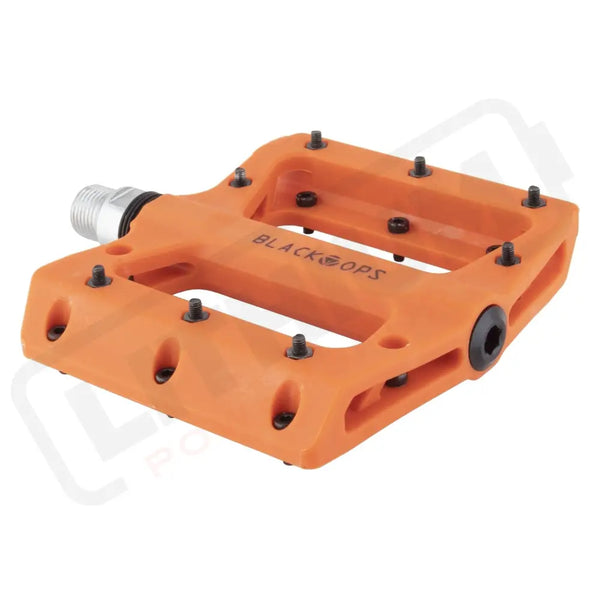

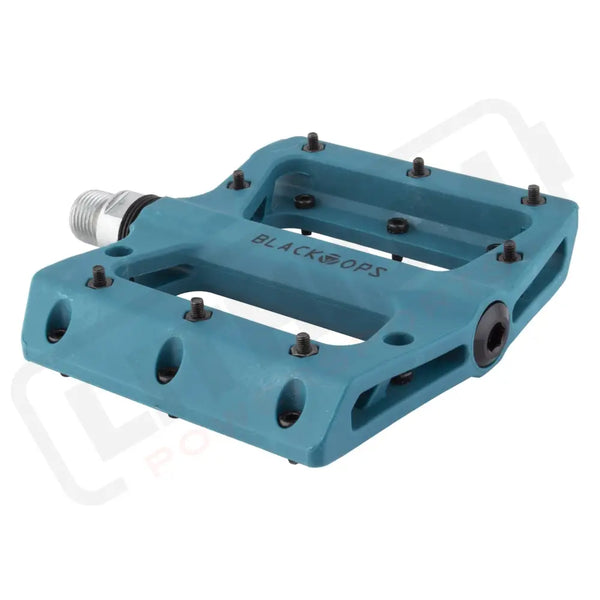

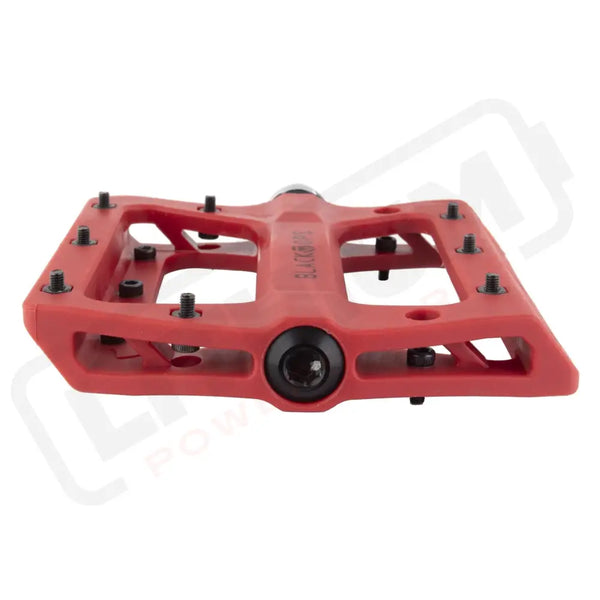

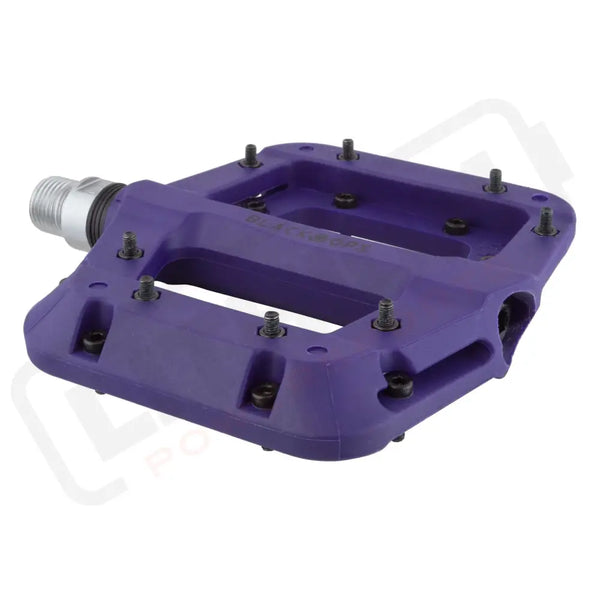

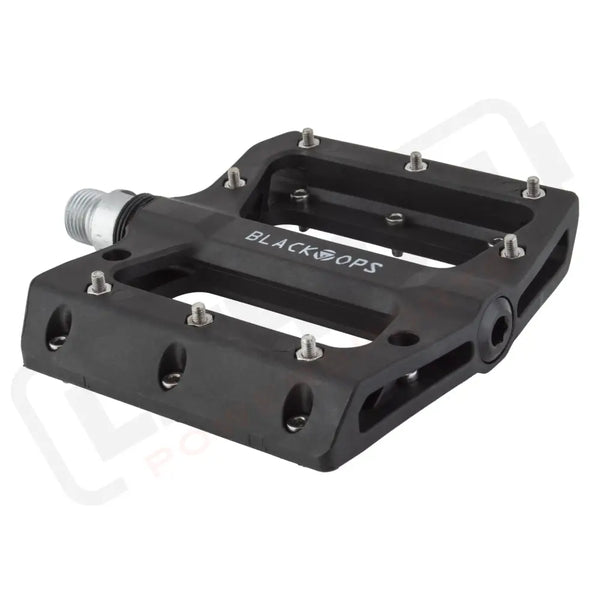

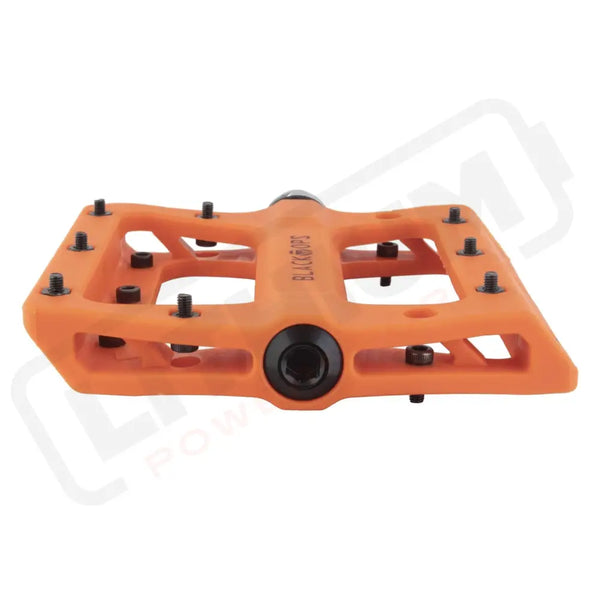

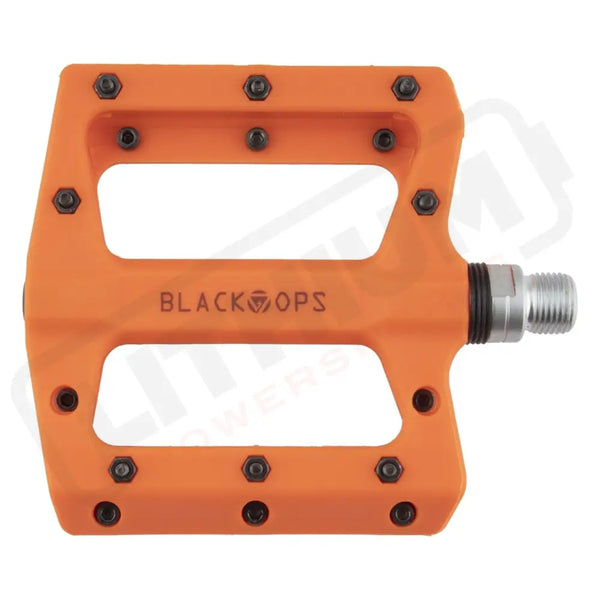

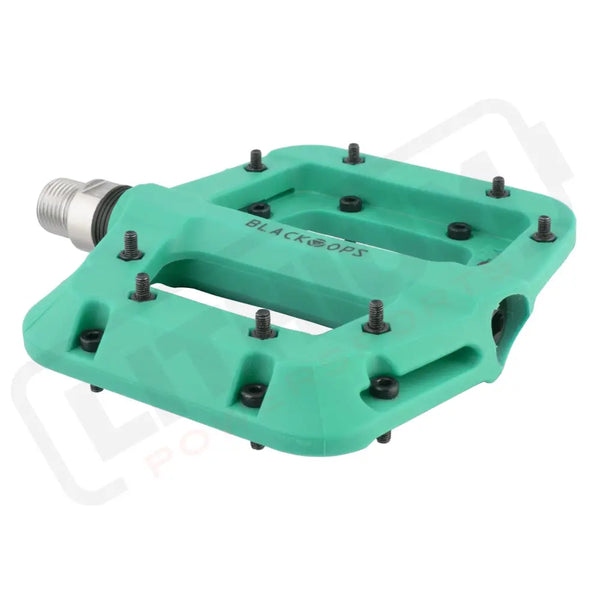

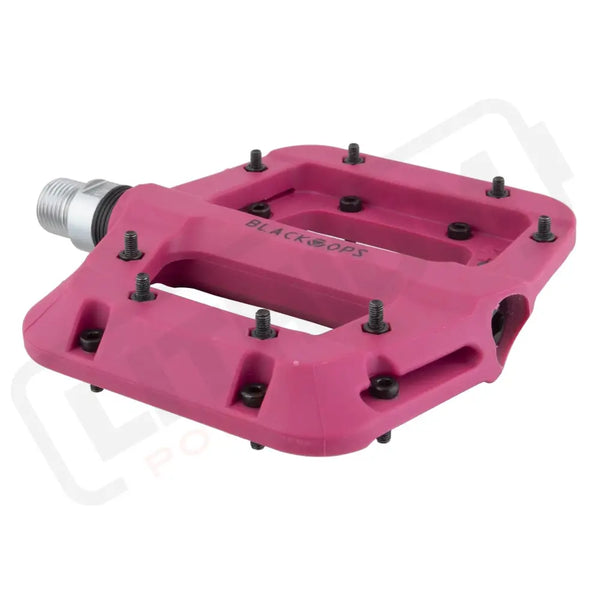

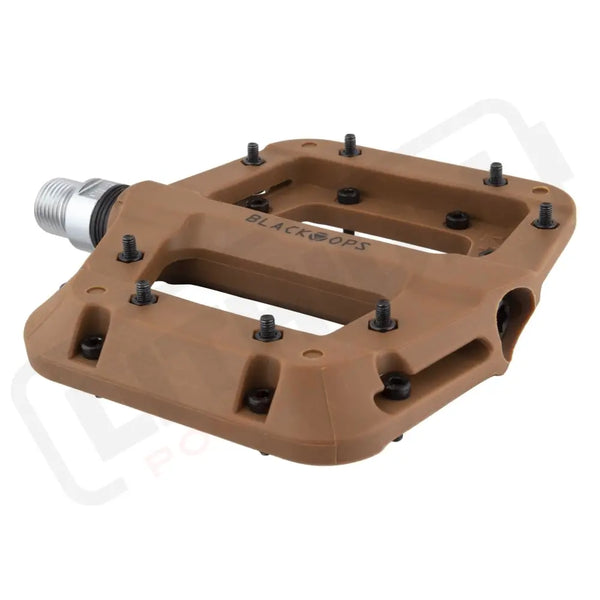

1 / 16$44.99Extremely durable nylon composite thermoplastic body 1 sealed bearing paired with a long lasting DU sleeve make for an impressively smooth interface Chromoly steel spindle for strength 8 removeabl...
-
$17.95Clear formula won’t fly off Displaces and repels water Reduces chain stretch and the requirement for frequent adjustments Lubricates between roller and sprocket Preserves O-Rings Can also be used o...
-
$49.00Bonnell 775 MX 450lb Rear Spring DVO LS 2.5-inch-stroke coil spring rated at 450 lb/in. Recommended starting rider-weight range with riding gear: 125–155 lb (57–70 kg). Spring choice sets rear sag ...
-
$49.00Bonnell 775 MX 650lb Rear Spring DVO LS 2.5-inch-stroke coil spring rated at 650 lb/in. Recommended starting rider-weight range with riding gear: 225–260+ lb (102–118+ kg). Spring choice sets rear ...
-

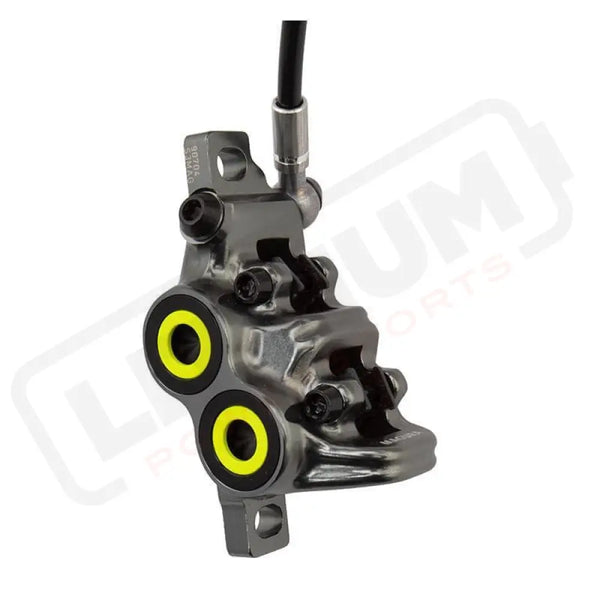

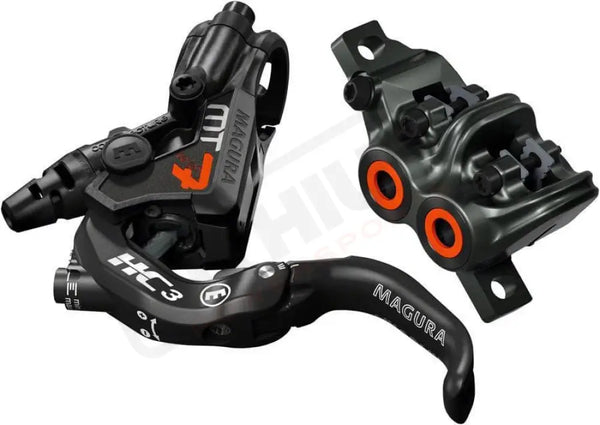

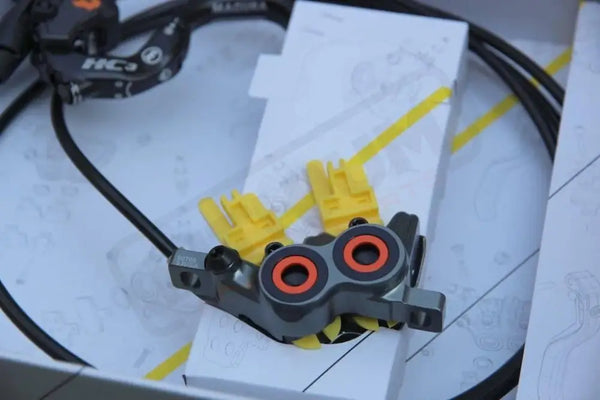

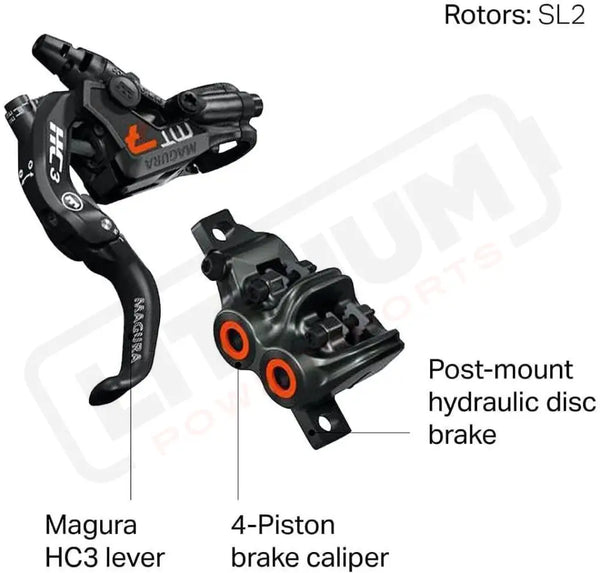

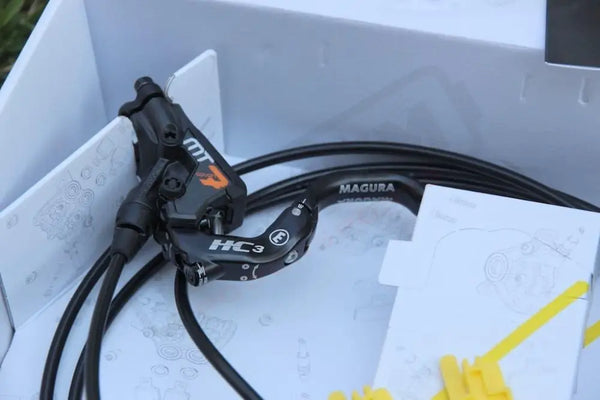

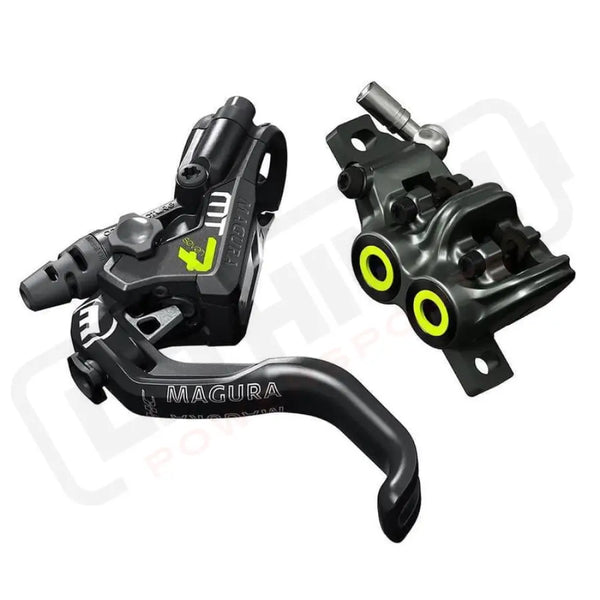

1 / 4$299.00"45th Anniversary" edition MT7 HC3 with orange graphics That's right, Magura USA just turned 45, still a baby compared to Magura Germany at 127 years old. To help celebrate we have put together a v...
-
$49.00Bonnell 775 MX 600lb Rear Spring DVO LS 2.5-inch-stroke coil spring rated at 600 lb/in. Recommended starting rider-weight range with riding gear: 200–230 lb (91–104 kg). Spring choice sets rear sag...
-
$49.00Bonnell 775 MX 550lb Rear Spring DVO LS 2.5-inch-stroke coil spring rated at 550 lb/in. Recommended starting rider-weight range with riding gear: 175–205 lb (79–93 kg). Spring choice sets rear sag ...
-
$49.00Bonnell 775 MX 400lb Rear Spring DVO LS 2.5-inch-stroke coil spring rated at 400 lb/in. Recommended starting rider-weight range with riding gear: 100–130 lb (45–59 kg). Spring choice sets rear sag ...
-
$269.00Bonnell 775 MX SH30 Rear Hub Bonnell SH30 V2 rear hub for the 775MX. 12×148 Boost spacing, 36-hole drilling, and 6-bolt brake-rotor interface. Built for the bike’s high-torque single-speed drivetra...
-
$20.00Bonnell 775 MX Lekkie Grip Set Replacement left/right black rubber grip set for the 775MX cockpit. Restores traction, vibration isolation, and control when the original grips are worn or damaged. ...
-
$449.00Bonnell 775 MX Complete Rear Wheel ASMB Genuine Bonnell Complete Rear Wheel ASMB for the Bonnell 775 MX. Part Number: B3108-75MREA-01 Fits: Bonnell 775 MX Genuine Bonnell OEM part
-
$17.00Bonnell 775 MX SH30 Rear Hub Axle End Cap set (with o-rings) Genuine Bonnell SH30 Rear Hub Axle End Cap set (with o-rings) for the Bonnell 775 MX. Part Number: B1321-MXAKIT-01 Fits: Bonnell 775 ...
-
$49.00Bonnell 775 MX 500lb Rear Spring DVO LS 2.5-inch-stroke coil spring rated at 500 lb/in. Recommended starting rider-weight range with riding gear: 150–180 lb (68–82 kg). Spring choice sets rear sag ...
-
$39.00Bonnell 775 MX Saddle Black 775MX saddle measuring 253×143 mm. Balances support and clearance for seated transitions while remaining narrow enough for active off-road body movement. Part Number: ...
-
$996.00Bonnell 775 MX A-65 Battery Pack 775MX A65 replacement battery only - does not include a charger. Part Number: B2003-A65BNL-03 Fits: Bonnell 775 MX Genuine Bonnell OEM part
-

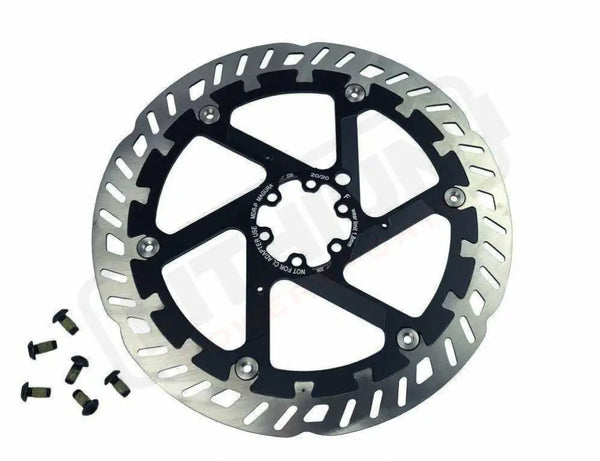

$84.00Get additional stopping power from this high performance MDR-P front brake rotor from Magura! No modifications necessary Special patented interlocking of the outer and inner rings (dovetail In...
-
$30.00Bonnell 775 MX Handle Bar 800mm Kalloy RT02 aluminum handlebar, 800 mm wide with 50 mm rise and 31.8 mm clamp diameter. Provides a wide, confidence-inspiring cockpit for leverage and control; may b...
-
$39.00Bonnell 775 MX Pedals Left/right K602 platform pedal set for the 775MX. Part Number: B3105-K60200-01 Fits: Bonnell 775 MX Genuine Bonnell OEM part
-
$288.00Bonnell 775 MX Motor Controller X12 with Brace (Asmb) Genuine Bonnell Motor Controller X12 with Brace (Asmb) for the Bonnell 775 MX. Part Number: B2000-X12BRA-01 Fits: Bonnell 775 MX Genuine Bon...
-
$149.00Bonnell 775 MX Intuition Display Assembly (775 MX M/L) Genuine Bonnell Intuition Display Assembly (775 MX M/L) for the Bonnell 775 MX. Part Number: B2002-INS75M-01 Fits: Bonnell 775 MX Genuine B...
-
$1,250.00Bonnell 775 MX X1 Pro Motor kit 83/38 - No Spindle Genuine Bonnell X1 Pro Motor kit 83/38 - No Spindle for the Bonnell 775 MX. Part Number: B1001-75MMA0-01 Fits: Bonnell 775 MX Genuine Bonnell O...
-
$11.99Bonnell 775 MX Chain Guide Set Component and hardware kit for the 775 chain guide, including plastic guides/slider, M5×22 screw, 1 mm and 2 mm setup washers, and associated fasteners. Part Number...
-
$8.99Bonnell 775 MX Throttle Extension Cable 650mm 650mm throttle extension cable that routes from the throttle to the 1T2 harness. Part Number: B2202-3PI650-01 Fits: Bonnell 775 MX Genuine Bonnell O...
-

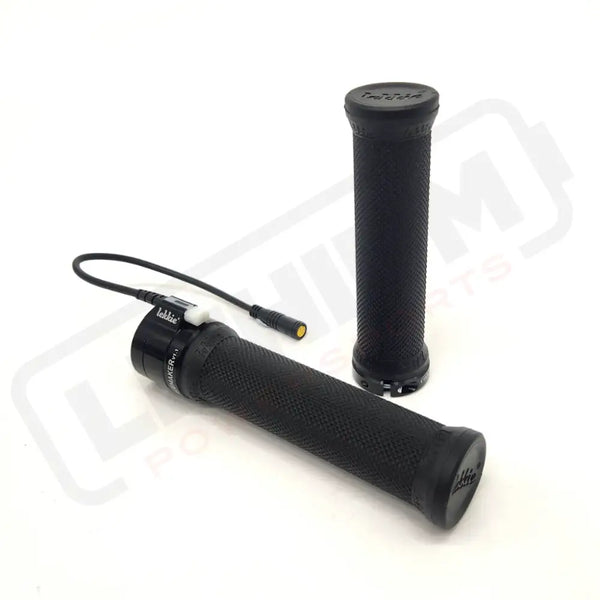

$133.99Bonnell 775 MX Twist Throttle Kit Complete Pacemaker twist-throttle and soft-grip assembly for the 775MX. Provides intuitive motorcycle-style, progressive power control and includes the matching gr...
-
$54.9963-tooth chainring sprocket. Connects to the 219H motor chain.
-
$224.99Bonnell 775 MX X1 Pro Gearbox With 11T Complete X1 Pro reduction gearbox assembly supplied with 11T output sprocket set and gearbox grease. Transfers motor power into the 219H primary drive chain. ...
-
1 / 4$265.00You will need a set of two for front and rear. Carbotecture body which is a proprietary carbon weave that is nearly twice as strong as carbon laminates, aluminum or magnesium Carbotecture SL radi...
-
$31.99Bonnell 775 MX Magnetic Speed Sensor Magnetic speed sensor and Bluetooth receiver. Includes sensor, magnet, and cable ties. Sends wheel-speed data to the controller/display for speed calculation an...
-

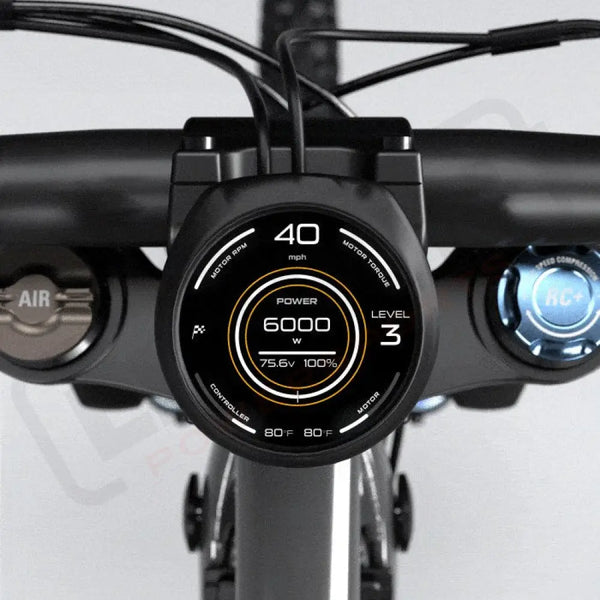

$166.99Bonnell 775 MX Intuition Display Assembly (775 MX XL) 775 MX Intuition Display kit for XL bikes only. Includes display, joycon, 170mm bolt, headset bottom cap, and 650mm 3-pin throttle extension ca...
-

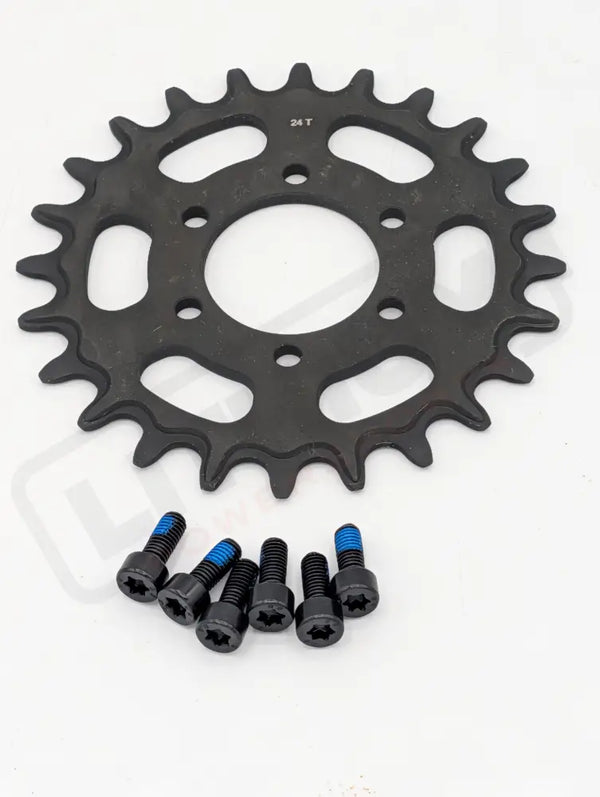

$39.99Bonnell 775 MX 24T Sprocket with Hardware 24-tooth rear sprocket with six mounting screws for the 775MX secondary drive. Top speed ~37 mph (~60 km/h). Perfect for all-around trail riding with balan...
-

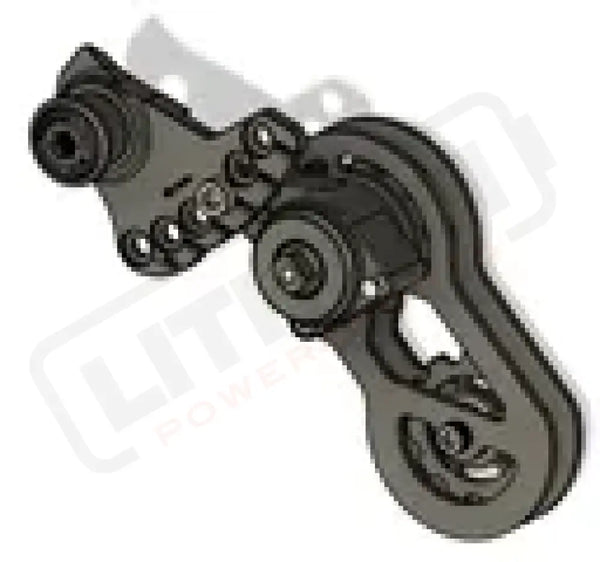

$110.99Bonnell 775 MX UDH Rear Tensioner & Mount Single-speed rear chain tensioner using the Universal Derailleur Hanger interface, compatible with 20–28T rear sprockets. Maintains chain tension as ge...
-
$43.99Bonnell 775 MX SH30 Rear Hub Axle Set Heavy-duty 12×148 mm steel rear hub axle assembly with preload collar and associated retention/sealing hardware. Supports the SH30 hub and maintains correct be...
-

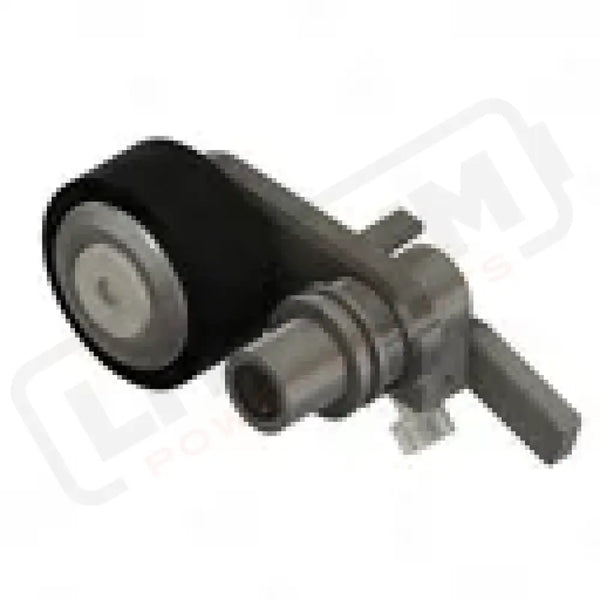

$39.99Bonnell 775MX Motor Chain Tensioner (V2) Upgraded chain tensioner designed specifically for the Bonnell 775MX electric dirt bike. The V2 motor chain tensioner maintains...
-
$11.99Bonnell 775 MX Spacer Pack 775MX drivetrain alignment spacer pack containing one 35×45×5 mm bottom-bracket spacer, one 22×30×1 mm spacer, and two 22×30×0.5 mm spacers. Used to set correct motor/gea...
-
$24.99Bonnell 775 MX Motor Mount Set Motor mounting hardware for X1 Pro motor on 775 MX. These are the two bolts that hold the motor housing to the bike frame. Part Number: B1302-75MASB-01 Fits: Bonne...
-
$16.99Bonnell 775 MX Chainguide Pulley Kit Chain-guide idler pulley service kit including 11T pulley, M5 screw, two washers, spacers, and socket-head hardware. Replacement sprocket for the rear chain ten...
-
$110.99Bonnell 775 MX Rear Rim & Spoke Kit (775 MX) 13-gauge spoke/nipple service kit for the 775MX. Includes 27.5" rim with 40 spokes and nipples (36 required, leaving spares). Intended for professio...
-

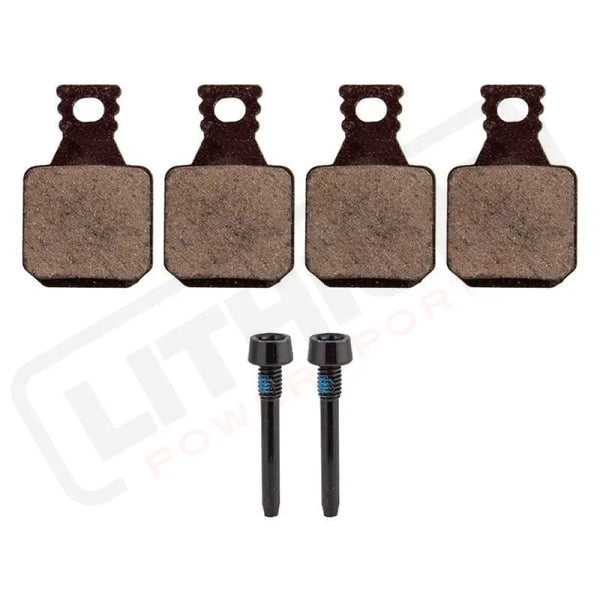

$46.009-series: 4 piston; 1 piece pad 8-series: 4 piston; 2 piece pad 7-series: 2 piston; 1 piece pad 6-series: Legacy *.1 / .P Performance series offers better grip *.2 Enduro series offers longer pad l...
-

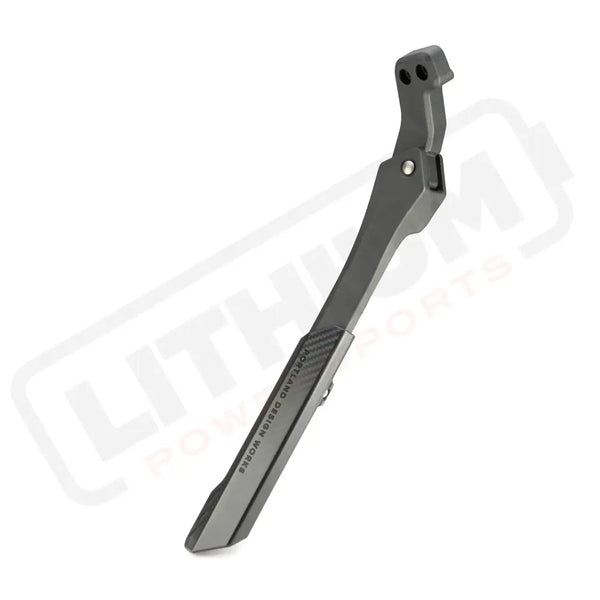

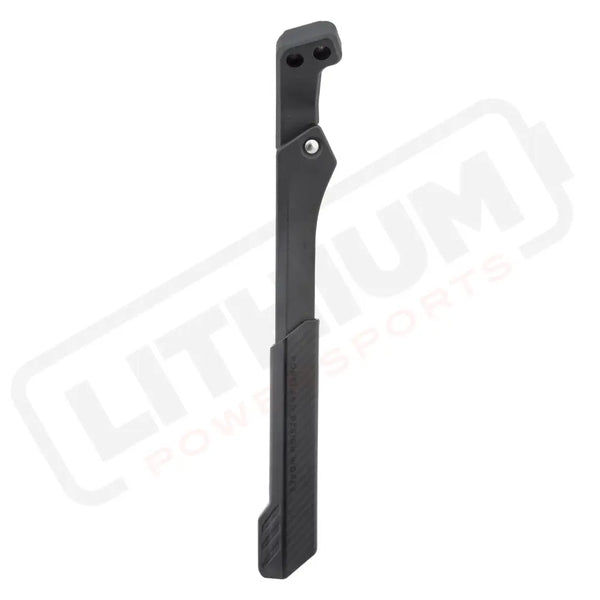

1 / 2$29.00When your e-bike or cargo bike tips the scales at over 40 lbs, a wee kickstand just won’t do. You need a Sturdy Lad. The Sturdy Lad is a stand-up fellow made specifically for keeping heavy bikes u...
-

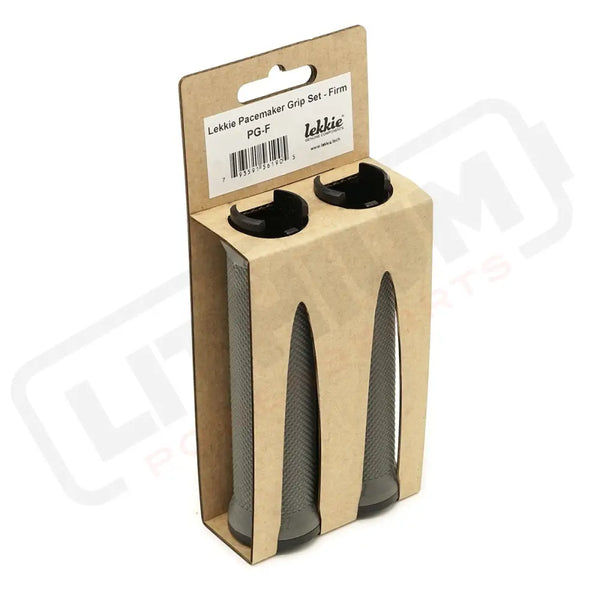

1 / 2$15.00Keep going for longer with these firm grips for your bike, e-bike, freestyle wheelbarrow…. whatever, as long as it has a 22.2mm bar it’ll lock on and give you the control you need. These are replac...
-

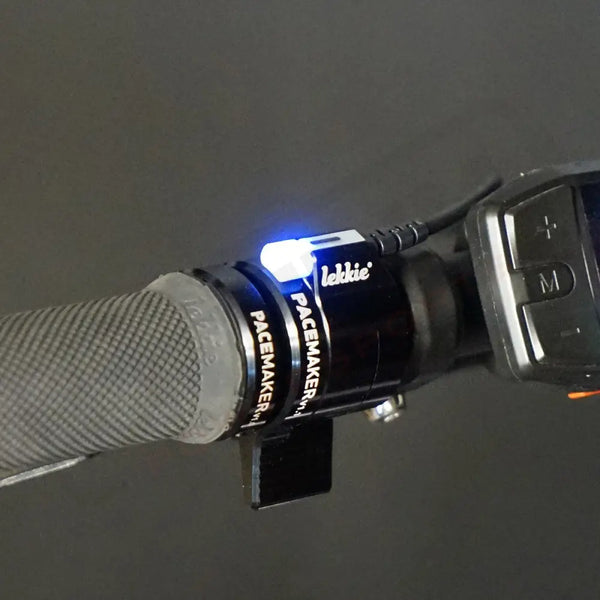

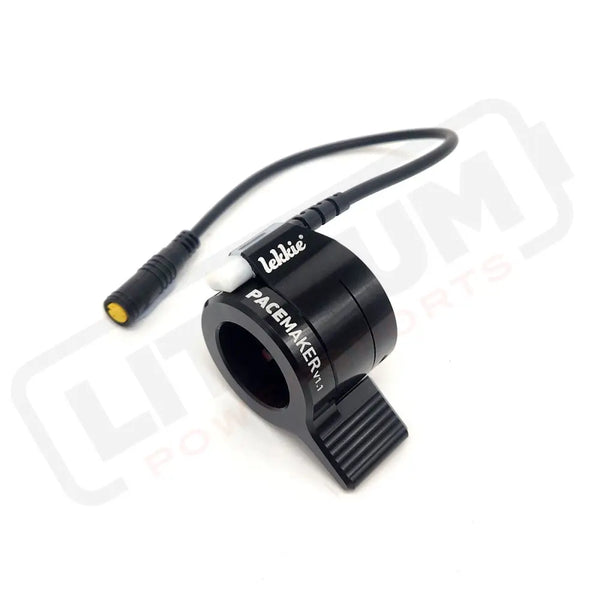

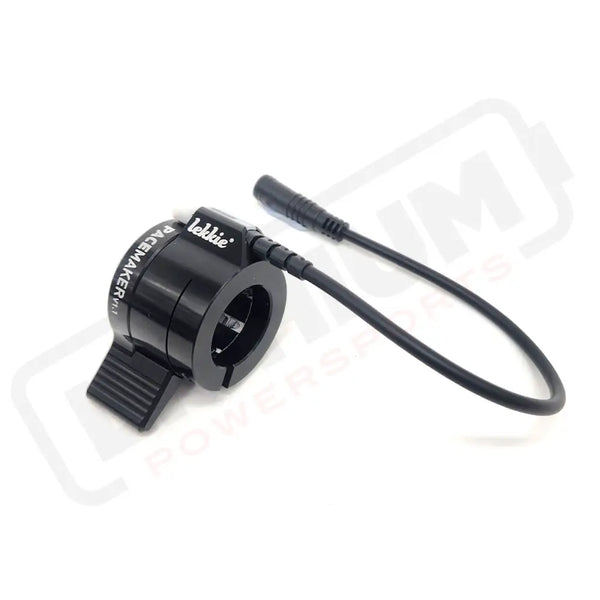

1 / 3$83.16Lekkie Pacemaker Electric Bike Thumb Throttle. A precision-engineered, full CNC thumb throttle designed for electric bikes and motorbikes. Designed to be robust, compact and match the quality of y...
-
$28.99Bonnell 775 MX 219H Motor Chain 775 MX motor chain – 43 link 219H with quicklink. Part Number: B1206-219043-01 Fits: Bonnell 775 MX Genuine Bonnell OEM part
